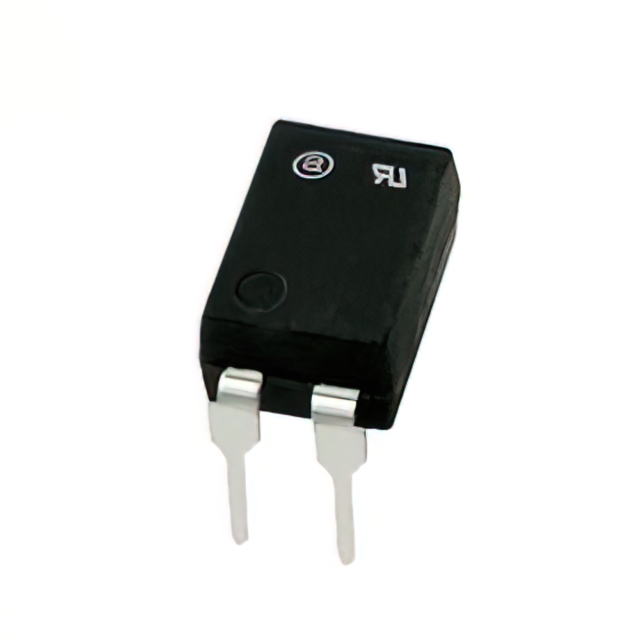

APR211B064000E00G
ActiveAmphenol Anytek
RELAY MOS 4 PIN DIP 60V AC/DC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
APR211B064000E00G
ActiveAmphenol Anytek
RELAY MOS 4 PIN DIP 60V AC/DC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | APR211B064000E00G |
|---|---|
| Approval Agency | cURus, UR |
| Circuit | SPST-NC (1 Form B) |
| Load Current | 550 mA |
| Mounting Type | Through Hole |
| On-State Resistance (Max) [Max] | 1.4 Ohms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC, AC |
| Package / Case | 4-DIP (0.300", 7.62mm) |
| Supplier Device Package | 4-DIP |
| Voltage - Input [Max] | 1.5 VDC |
| Voltage - Input [Min] | 0.9 V |
| Voltage - Load [Max] | 60 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.93 | |
| 10 | $ 3.69 | |||
| 25 | $ 3.28 | |||
| 97 | $ 2.95 | |||
| 291 | $ 2.62 | |||
| 582 | $ 2.46 | |||
| 1067 | $ 2.29 | |||
Description
General part information
APR211 Series
Solid State SPST-NC (1 Form B) 4-DIP (0.300", 7.62mm)
