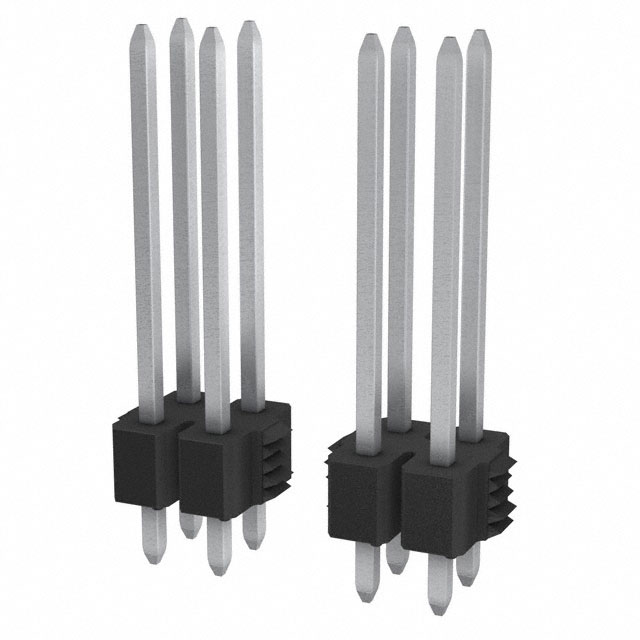

10046593-400H

Active

Amphenol ICC (FCI)

CONN HEADER VERT 20000POS 2.54MM

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HEADER VERT 20000POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	10046593-400H

Connector Type	Breakaway, Header
Contact Finish - Mating	Tin-Lead
Contact Finish Thickness - Mating	120 µin
Contact Finish Thickness - Mating	3.05 Ám
Contact Length - Mating	0.505 in
Contact Length - Mating	12.83 mm
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	Cuttable
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	0.695 in
Overall Contact Length	17.65 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

Part	Termination	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Type	Insulation Height	Insulation Height	Current Rating (Amps)	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Shrouding	Contact Length - Mating	Contact Length - Mating	Contact Material	Contact Shape	Overall Contact Length	Overall Contact Length	Number of Rows	Mounting Type	Material Flammability Rating	Fastening Type	Contact Finish - Post
Amphenol ICC (FCI) 10046593-400H	Solder	Black	120 µin	3.05 Ám	Tin-Lead	All	0.1 in	2.54 mm	Male Pin	0.1 in	2.54 mm	3 A	Breakaway Header	2.54 mm	0.1 in	Cuttable	-65 ░C	130 °C	0.09 "	2.29 mm	Unshrouded	0.505 in	12.83 mm	Brass	Square	0.695 in	17.65 mm	2	Through Hole	UL94 V-0	Push-Pull
Amphenol ICC (FCI) 10046593-400HLF	Solder	Black	100 çin	2.54 çm		All	0.1 in	2.54 mm	Male Pin	0.1 in	2.54 mm	3 A	Breakaway Header	2.54 mm	0.1 in	Cuttable	-65 ░C	130 °C	0.09 "	2.29 mm	Unshrouded	0.505 in	12.83 mm	Brass	Square	0.695 in	17.65 mm	2	Through Hole	UL94 V-0	Push-Pull	Tin
