0022041021

Active

Molex

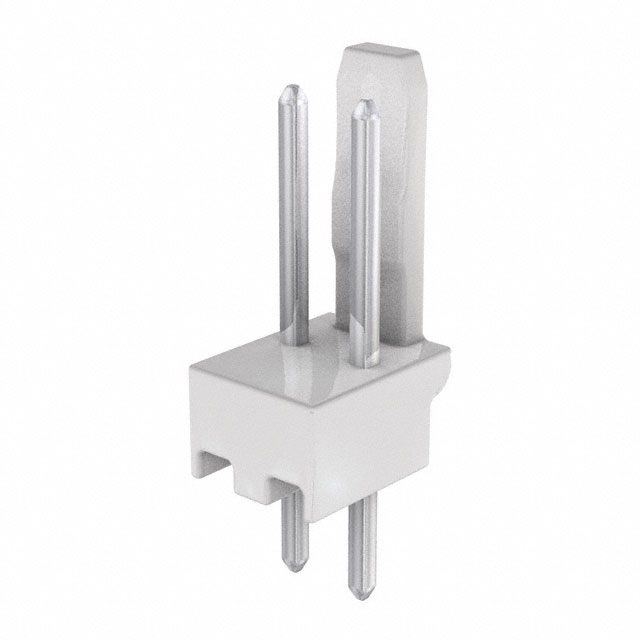

CONN HEADER VERT 2POS 2.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0022041021

Active

Molex

CONN HEADER VERT 2POS 2.5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0022041021

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	5.08 µm
Contact Finish Thickness - Mating	200 µin
Contact Length - Mating	7.49 mm
Contact Length - Mating	0.295 in
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height	11.7 mm
Insulation Height	0.461 "
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	14.2 mm
Overall Contact Length	0.559 in
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder

002204 Series

Part	Contact Finish - Post	Material Flammability Rating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Insulation Material	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Number of Positions	Contact Material	Style	Number of Positions Loaded	Contact Shape	Insulation Height [z]	Insulation Height [z]	Shrouding	Applications	Pitch - Mating	Pitch - Mating	Insulation Color	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Contact Finish - Mating	Number of Positions Loaded	Insulation Height	Insulation Height
Molex 0022045067	Tin	UL94 V-0	Through Hole	2.54 çm	100 çin	Solder	Friction Lock	2.54 µm	100 µin	1	Nylon Polyamide (PA)	7.49 mm	0.295 in	14.22 mm	0.56 in	6	Brass	Board to Board Cable	4	Square	0.322 "	8.18 mm	Shrouded - 1 Wall	Automotive General Purpose Medical Telecommunications	0.1 in	2.54 mm	White	Header	3.56 mm	0.14 in	Male Pin
Molex 0022045066	Tin	UL94 V-0	Through Hole	2.54 çm	100 çin	Solder	Friction Lock	2.54 µm	100 µin	1	Nylon Polyamide (PA)	7.49 mm	0.295 in	14.22 mm	0.56 in	6	Brass	Board to Board Cable	4	Square	0.322 "	8.18 mm	Shrouded - 1 Wall	Automotive General Purpose Medical Telecommunications	0.1 in	2.54 mm	White	Header	3.56 mm	0.14 in	Male Pin
Molex 0022046104	Tin	UL94 V-0	Through Hole	0.51 µm	20 µin	Solder	Friction Lock	2.54 µm	100 µin	1	Nylon Polyamide (PA)	7.49 mm	0.295 in	14.22 mm	0.56 in	10	Brass	Board to Board Cable	9	Square	0.322 "	8.18 mm	Shrouded - 1 Wall	Automotive General Purpose Medical Telecommunications	0.1 in	2.54 mm	White	Header	3.56 mm	0.14 in	Male Pin	Gold
Molex 0022045139	Tin	UL94 V-0	Through Hole	2.54 çm	100 çin	Solder	Friction Lock	2.54 µm	100 µin	1	Nylon Polyamide (PA)	7.49 mm	0.295 in	14.22 mm	0.56 in	13	Brass	Board to Board Cable	12	Square	0.322 "	8.18 mm	Shrouded - 1 Wall	Automotive General Purpose Medical Telecommunications	0.1 in	2.54 mm	White	Header	3.56 mm	0.14 in	Male Pin
Molex 0022045088	Tin	UL94 V-0	Through Hole	2.54 çm	100 çin	Solder	Friction Lock	2.54 µm	100 µin	1	Nylon Polyamide (PA)	7.49 mm	0.295 in	14.22 mm	0.56 in	8	Brass	Board to Board Cable		Square	0.322 "	8.18 mm	Shrouded - 1 Wall	Automotive General Purpose Medical Telecommunications	0.1 in	2.54 mm	White	Header	3.56 mm	0.14 in	Male Pin
Molex 0022041021	Tin	UL94 V-0	Through Hole	5.08 µm	200 µin	Solder	Friction Lock			1	Nylon Polyamide (PA)	7.49 mm	0.295 in	14.2 mm	0.559 in	2	Brass	Board to Cable/Wire		Square			Shrouded - 1 Wall		0.098 in	2.5 mm	Natural	Header	3.4 mm	0.134 in	Male Pin		All	11.7 mm	0.461 "
Molex 0022046084	Tin	UL94 V-0	Through Hole	0.51 µm	20 µin	Solder	Friction Lock	2.54 µm	100 µin	1	Nylon Polyamide (PA)	7.49 mm	0.295 in	14.22 mm	0.56 in	8	Brass	Board to Board Cable	7	Square	0.322 "	8.18 mm	Shrouded - 1 Wall	Automotive General Purpose Medical Telecommunications	0.1 in	2.54 mm	White	Header	3.56 mm	0.14 in	Male Pin	Gold
Molex 0022045116	Tin	UL94 V-0	Through Hole	2.54 çm	100 çin	Solder	Friction Lock	2.54 µm	100 µin	1	Nylon Polyamide (PA)	7.49 mm	0.295 in	14.22 mm	0.56 in	11	Brass	Board to Board Cable	10	Square	0.322 "	8.18 mm	Shrouded - 1 Wall	Automotive General Purpose Medical Telecommunications	0.1 in	2.54 mm	White	Header	3.56 mm	0.14 in	Male Pin
Molex 0022041071	Tin	UL94 V-0	Through Hole	5.08 µm	200 µin	Solder	Friction Lock			1	Nylon Polyamide (PA)	7.49 mm	0.295 in	14.2 mm	0.559 in	7	Brass	Board to Cable/Wire		Square			Shrouded - 1 Wall		0.098 in	2.5 mm	Natural	Header	3.4 mm	0.134 in	Male Pin		All	11.7 mm	0.461 "
Molex 0022045129	Tin	UL94 V-0	Through Hole	2.54 çm	100 çin	Solder	Friction Lock	2.54 µm	100 µin	1	Nylon Polyamide (PA)	7.49 mm	0.295 in	14.22 mm	0.56 in	12	Brass	Board to Board Cable	11	Square	0.322 "	8.18 mm	Shrouded - 1 Wall	Automotive General Purpose Medical Telecommunications	0.1 in	2.54 mm	White	Header	3.56 mm	0.14 in	Male Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.77
		10	$ 0.58
		100	$ 0.45
		500	$ 0.41

Description

General part information

002204 Series

Connector Header Through Hole 2 position 0.098" (2.50mm)
