BJ79C-204

Active

Cinch Connectivity Solutions Trompeter

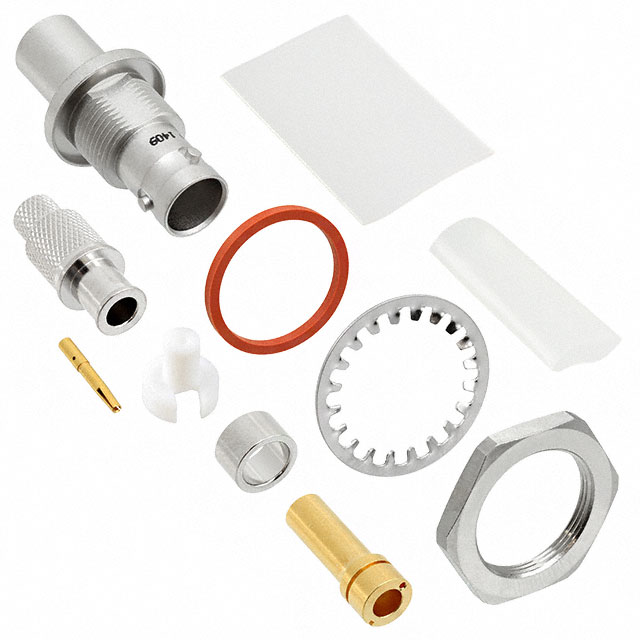

CONN TRB JACK STR CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

BJ79C-204

Active

Cinch Connectivity Solutions Trompeter

CONN TRB JACK STR CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BJ79C-204

Body Finish	Nickel
Body Material	Brass
Cable Group	Raychem 10602
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Twinaxial/Triaxial, TRB
Connector Type	Female Socket (Concentric), Jack
Contact Termination	Crimp
Fastening Type	Bayonet Lock
Features	Three Lug
Frequency - Max [Max]	500 MHz
Housing Color	Silver
Impedance	Non-Constant
Includes	1 Washer, 1 Heat Shrink, 1 Connector, 1 Nut, 1 Strain Relief
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	400 V

BJ79 Series

Part	Fastening Type	Body Material	Body Finish	Shield Termination	Center Contact Plating	Includes	Features	Center Contact Material	Contact Termination	Impedance	Connector Type	Cable Group	Mating Cycles	Housing Color	Connector Style	Number of Ports	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Frequency - Max [Max]
Cinch Connectivity Solutions Trompeter BJ79C-204	Bayonet Lock	Brass	Nickel	Crimp	Gold	1 Connector 1 Heat Shrink 1 Nut 1 Strain Relief 1 Washer	Three Lug	Beryllium Copper	Crimp	Non-Constant	Female Socket (Concentric) Jack	Raychem 10602	500	Silver	TRB Twinaxial/Triaxial	1	400 V	-65 ░C	165 °C	Bulkhead - Front Side Nut	500 MHz
Cinch Connectivity Solutions Trompeter BJ79-7	Bayonet Lock	Brass	Nickel	Wrench Clamp	Gold	Connector Nut Washer	Three Lug	Beryllium Copper	Solder	Non-Constant	Female Socket (Concentric) Jack	TRC-50-2 TRC-75-2	500	Silver	TRB Twinaxial/Triaxial	1	400 V	-65 ░C	165 °C	Bulkhead - Front Side Nut	500 MHz
Cinch Connectivity Solutions Trompeter BJ79C-303	Bayonet Lock	Brass	Nickel	Crimp	Gold	1 Connector 1 Heat Shrink 1 Nut 1 Strain Relief 1 Washer	Three Lug	Beryllium Copper	Crimp	Non-Constant	Female Socket (Concentric) Jack	Raychem 7528A5314	500	Silver	TRB Twinaxial/Triaxial	1	400 V	-65 ░C	165 °C	Bulkhead - Front Side Nut	500 MHz
Cinch Connectivity Solutions Trompeter BJ79C-201	Bayonet Lock	Brass	Nickel	Crimp	Gold	1 Connector 1 Heat Shrink 1 Nut 1 Strain Relief 1 Washer	Three Lug	Beryllium Copper	Crimp		Female Socket (Concentric) Jack	M17/176-00002	500	Silver	TRB Twinaxial/Triaxial	1	400 V	-65 ░C	165 °C	Bulkhead - Front Side Nut	500 MHz
Cinch Connectivity Solutions Trompeter BJ79C-212	Bayonet Lock	Brass	Nickel	Crimp	Gold	1 Connector 1 Nut 1 Strain Relief 1 Washer	Three Lug	Beryllium Copper	Crimp	Non-Constant	Female Socket (Concentric) Jack	Raychem 2524E0114	500	Silver	TRB Twinaxial/Triaxial	1	400 V	-65 ░C	165 °C	Bulkhead - Front Side Nut	500 MHz
Cinch Connectivity Solutions Trompeter BJ79-9	Bayonet Lock	Brass	Nickel	Wrench Clamp	Gold	Connector Nut Washer	Three Lug	Beryllium Copper	Solder	Non-Constant	Female Socket (Concentric) Jack	TWC-124-2 TWC-78-2	500	Silver	TRB Twinaxial/Triaxial	1	400 V	-65 ░C	165 °C	Bulkhead - Front Side Nut	500 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 67.87
		10	$ 62.28
		30	$ 60.35

Description

General part information

BJ79 Series

TRB, Twinaxial/Triaxial Connector Jack, Female Socket (Concentric) Non-Constant Panel Mount Crimp
