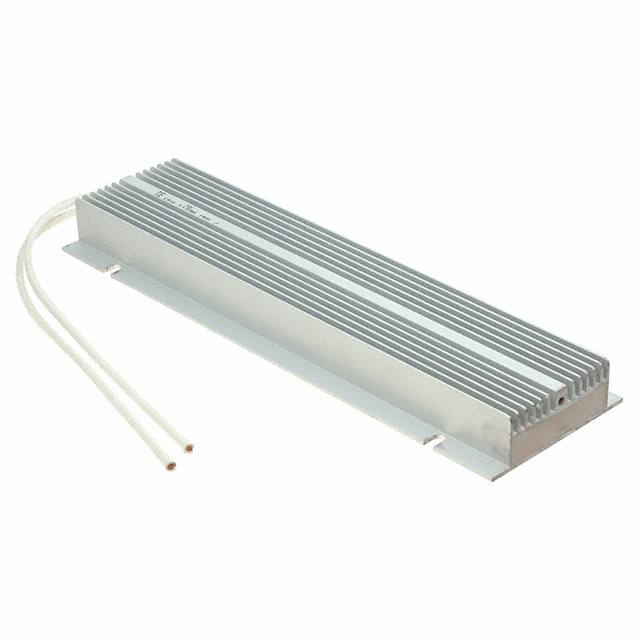

CFH1100A5R6J

Active

TE Connectivity Passive Product

RES CHAS MNT 5.6 OHM 5% 1000W

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES CHAS MNT 5.6 OHM 5% 1000W

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Tolerance	Mounting Feature	Composition	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Style	Resistance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Coating, Housing Type	Package / Case
TE Connectivity Passive Product CFH1100A5R6J	1 kW	5 %	Flanges	Wirewound	1.181 "	30 mm	Wire Leads	5.6 Ohms	12.598 "	95 mm	320 mm	3.74 "	Aluminum	Rectangular Wire Leads
TE Connectivity Passive Product CFH1100A2R7J	1 kW	5 %	Flanges	Wirewound	1.181 "	30 mm	Wire Leads	2.7 Ohms	12.598 "	95 mm	320 mm	3.74 "	Aluminum	Rectangular Wire Leads
TE Connectivity Passive Product CFH1100A22RJ	1 kW	5 %	Flanges	Wirewound	1.181 "	30 mm	Wire Leads	22 Ohms	12.598 "	95 mm	320 mm	3.74 "	Aluminum	Rectangular Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 298.11

General part information

5.6 Ohms ±5% 1000W Wirewound Chassis Mount Resistor
