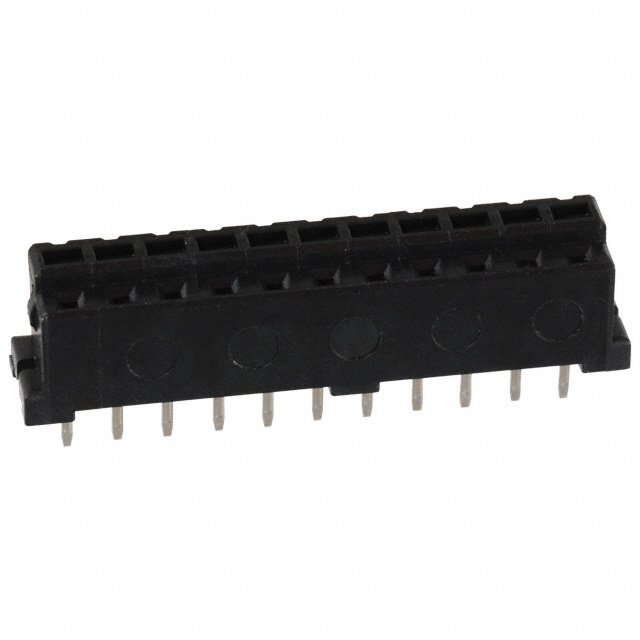

DF3-11S-2DSA(25)

LTB

Hirose Electric USA, Inc.

CONN RCPT 11POS 0.079 TIN PCB

Search across all available documentation for this part.

LTB

Hirose Electric USA, Inc.

CONN RCPT 11POS 0.079 TIN PCB

Technical Specifications

Parameters and characteristics for this part

Specification	DF3-11S-2DSA(25)

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	Black
Insulation Height	5.9 mm
Insulation Height	0.232 in
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights [z]	6.6 mm, 7.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	11
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	30 VAC

Part	Insulation Color	Termination	Number of Rows	Contact Shape	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Mounting Type	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Fastening Type	Contact Type	Number of Positions	Style	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Connector Type	Number of Positions Loaded	Material Flammability Rating	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mated Stacking Heights [z]	Insulation Material	Features	Wire Gauge	Color	Contact Finish	Cable Termination	Wire Type	Pitch [x]	Pitch [x]	Contact Termination	Note
Hirose Electric USA, Inc. DF3-11S-2DSA(25)	Black	Solder	1	Square	3 A	-30 ░C	85 °C	5.9 mm	0.232 in	Through Hole	Tin	0.079 in	2 mm	Friction Lock	Female Socket	11	Board to Board Cable	30 VAC	2 çm	78.7 çin	0.118 in	3 mm	Receptacle	All	UL94 V-0	Phosphor Bronze	78.7 µin	2 µm	6.6 mm 7.5 mm	Nylon Polyamide (PA)
Hirose Electric USA, Inc. DF3-11S-2R28(05)			1							Free Hanging (In-Line)					Female Socket	11							Receptacle								Closed End	28 AWG	Black	Tin	IDC	Discrete	0.079 in	2 mm
Hirose Electric USA, Inc. DF3-11S-2C			1			-55 °C	105 ░C			Free Hanging (In-Line)					Female Socket	11							Receptacle							Nylon Polyamide (PA)			Black				0.079 in	2 mm	Crimp	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	20	$ 1.38

General part information

11 Position Receptacle Connector 0.079" (2.00mm) Through Hole Tin
