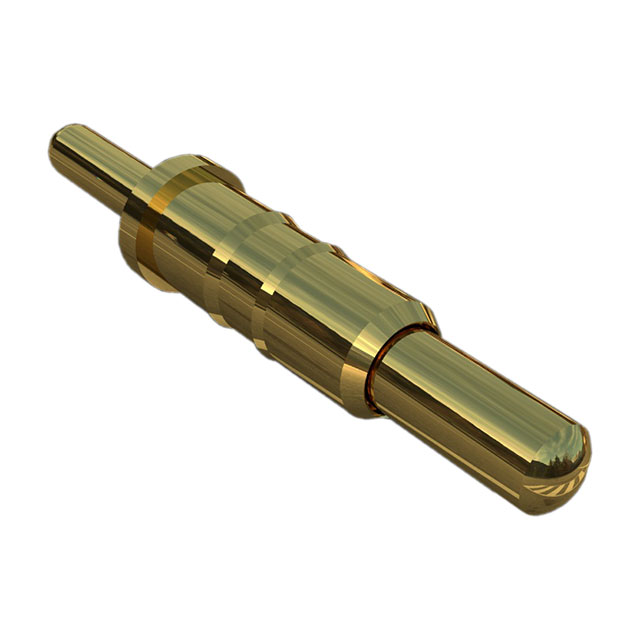

90155-AS
ObsoletePRECI-DIP SA
CONTACT SPRING LOADED T/H GOLD
Deep-Dive with AI
Search across all available documentation for this part.
90155-AS
ObsoletePRECI-DIP SA
CONTACT SPRING LOADED T/H GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 90155-AS |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 3 A |
| Mating Cycles | 40000 |
| Maximum Working Height [Max] | 7 mm |
| Maximum Working Height [Max] | 0.276 in |
| Minimum Working Height [Min] | 0.22 in |
| Minimum Working Height [Min] | 5.6 mm |
| Mounting Type | Through Hole |
| Operating Force - Initial | 25.49 gf |
| Operating Force - Mid Compression | 86.68 gf |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension [diameter] | 1.83 mm |
| Pad Layout Dimension [diameter] | 0.072 in |
| Plunger Size [diameter] | 0.042 in |
| Plunger Size [diameter] | 1.07 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
90155 Series
Contact Spring Through Hole
