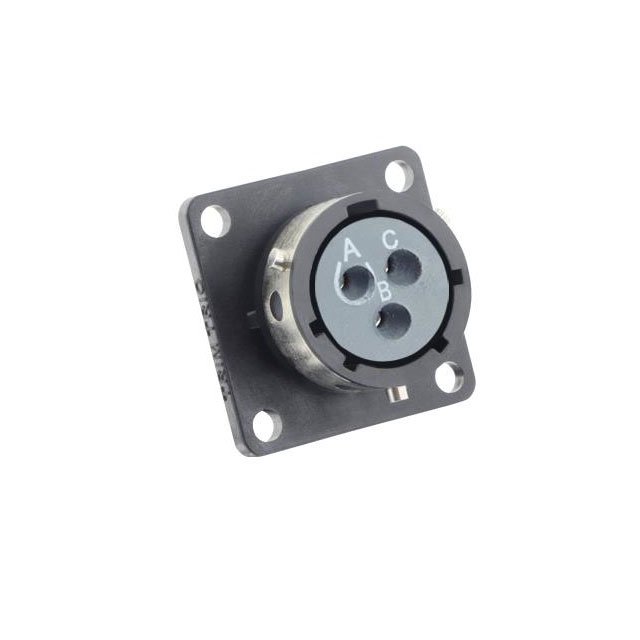

UTGX012D3S

Active

Souriau-Sunbank by Eaton

CONN RCPT FMALE 3POS SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

UTGX012D3S

Active

Souriau-Sunbank by Eaton

CONN RCPT FMALE 3POS SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTGX012D3S

Applications	Testing Equipment, Industrial, Automation, Instrumentation
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Material	Brass
Current Rating (Amps)	13 A
Fastening Type	Bayonet Lock
Features	UV Resistant
Ingress Protection	IP68, IP69K
Insert Material	Polychloroprene
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Plastic
Shell Size - Insert	12-3
Shielding	Unshielded
Termination	Solder
Voltage Rating	600 V

UTGX0 Series

...

Part	Fastening Type	Orientation	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Features	Ingress Protection	Color	Shielding	Applications	Contact Material	Number of Positions	Material Flammability Rating	Termination	Mounting Type	Current Rating (Amps)	Insert Material	Mounting Feature	Voltage Rating	Shell Size - Insert	Contact Size	Housing Color	Contact Type	Contact Shape	Includes	Note	Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Souriau-Sunbank by Eaton UTGX014D19P	Bayonet Lock	N	Male Pins Receptacle	-40 °C	105 ░C	Plastic	UV Resistant	IP68 IP69K	Black	Unshielded	Automation Industrial Instrumentation Testing Equipment	Brass	19	UL94 V-0	Solder	Panel Mount Through Hole	4 A	Polychloroprene	Flange	250 VDC
Souriau-Sunbank by Eaton UTGX012D2S	Bayonet Lock	N	Receptacle Female Sockets	-40 °C	105 ░C	Plastic	UV Resistant	IP68 IP69K	Black	Unshielded	Automation Industrial Instrumentation Testing Equipment	Brass	2	UL94 V-0	Solder	Panel Mount Through Hole	13 A	Polychloroprene	Flange	600 V	12-2
Souriau-Sunbank by Eaton UTGX012D2P	Bayonet Lock	N	Male Pins Receptacle	-40 °C	105 ░C	Plastic	UV Resistant	IP68 IP69K	Black	Unshielded	Automation Industrial Instrumentation Testing Equipment	Brass	2	UL94 V-0	Solder	Panel Mount Through Hole	13 A	Polychloroprene	Flange	600 V	12-2
Souriau-Sunbank by Eaton UTGX0JC102W2P	Bayonet Lock	N	Receptacle Housing	-40 °C	105 ░C		Backshell UV Resistant	IP68 IP69K		Unshielded			4	UL94 V-0		Free Hanging (In-Line) Panel Mount		Nylon Polyamide (PA)	Flange		10-2W2	12 (2) 20 (2)	Black	Crimp	Circular	1 Backshell 1 Connector	Contacts Not Included	For Male Pins
Souriau-Sunbank by Eaton UTGX012E4P	Bayonet Lock	N	Male Pins Receptacle	-40 °C	105 ░C	Plastic	UV Resistant	IP68 IP69K	Black	Unshielded	Automation Industrial Instrumentation Testing Equipment	Brass	4	UL94 V-0			13 A	Polychloroprene	Flange	600 V	12-4
Souriau-Sunbank by Eaton UTGX012D3S	Bayonet Lock	N	Receptacle Female Sockets	-40 °C	105 ░C	Plastic	UV Resistant	IP68 IP69K	Black	Unshielded	Automation Industrial Instrumentation Testing Equipment	Brass		UL94 V-0	Solder	Panel Mount Through Hole	13 A	Polychloroprene	Flange	600 V	12-3
Souriau-Sunbank by Eaton UTGX014E15S	Bayonet Lock	N	Receptacle Female Sockets	-40 °C	105 ░C	Plastic	UV Resistant	IP68 IP69K	Black	Unshielded	Automation Industrial Instrumentation Testing Equipment	Brass	15	UL94 V-0			5 A 12 A	Polychloroprene	Flange	250 VDC 600 V									14	15
Souriau-Sunbank by Eaton UTGX0103W3P	Bayonet Lock	N	Receptacle Housing	-40 °C	105 ░C		UV Resistant	IP68 IP69K		Unshielded			6	UL94 V-0				Nylon Polyamide (PA)	Flange		10-3W3	16 (3) 20 (3)	Black	Crimp	Circular		Contacts Not Included	For Male Pins
Souriau-Sunbank by Eaton UTGX014D5P	Bayonet Lock	N	Male Pins Receptacle	-40 °C	105 ░C	Plastic	UV Resistant	IP68 IP69K	Black	Unshielded	Automation Industrial Instrumentation Testing Equipment	Brass		UL94 V-0	Solder	Panel Mount Through Hole	12 A	Polychloroprene	Flange	600 V	14-5
Souriau-Sunbank by Eaton UTGX014E15P	Bayonet Lock	N	Male Pins Receptacle	-40 °C	105 ░C	Plastic	UV Resistant	IP68 IP69K	Black	Unshielded	Automation Industrial Instrumentation Testing Equipment	Brass	15	UL94 V-0			5 A 12 A	Polychloroprene	Flange	250 VDC 600 V									14	15

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	25	$ 30.82

Description

General part information

UTGX0 Series

3 Position Circular Connector Receptacle, Female Sockets Solder

Documents

Technical documentation and resources

No documents available
