Q-2W0440003012I

Active

Amphenol Custom Cable

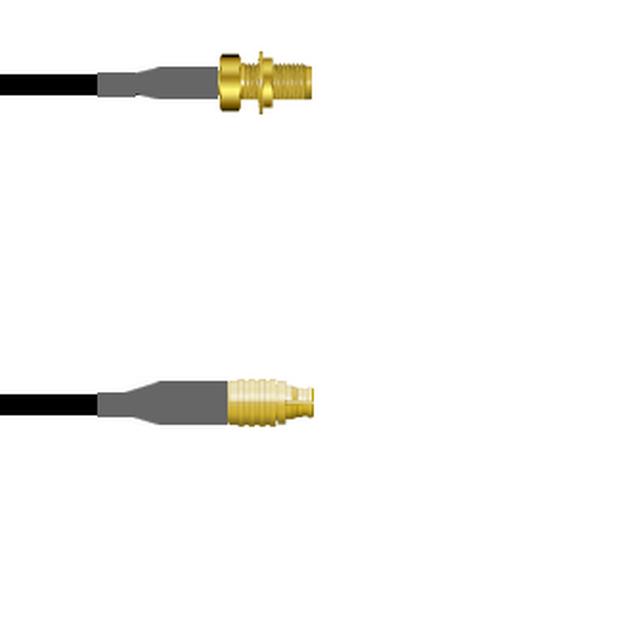

CBL ASSY SMA-SMP JACK-PLUG 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2W0440003012I

Active

Amphenol Custom Cable

CBL ASSY SMA-SMP JACK-PLUG 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2W0440003012I

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMP Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	SMA to SMP

Q-2W0440 Series

Part	Cable Impedance	Color	Length	Length	Length	1st Connector	1st Connector Mounting Type	Connector Impedance	1st Connector Mounting Feature	Cable Type	2nd Contact Gender	Features	1st Contact Gender	2nd Connector	Style	2nd Connector Mounting Type	Frequency - Max [Max]	Overall Impedance	Length [x]	Length [x]
Amphenol Custom Cable Q-2W0440003060I	50 Ohms	Black	5 ft	1.5 m	5 '	SMA Jack	Panel Mount	50 Ohms	Bulkhead - Front Side Nut	RG-174	Female	Shielded	Female	SMP Plug	SMA to SMP	Free Hanging (In-Line)	1 GHz	50 Ohms
Amphenol Custom Cable Q-2W0440003012I	50 Ohms	Black		304.8 mm	12 "	SMA Jack	Panel Mount	50 Ohms	Bulkhead - Front Side Nut	RG-174	Female	Shielded	Female	SMP Plug	SMA to SMP	Free Hanging (In-Line)	1 GHz	50 Ohms
Amphenol Custom Cable Q-2W0440003003M	50 Ohms	Black	9.8 '	3 m	118.1 in	SMA Jack	Panel Mount	50 Ohms	Bulkhead - Front Side Nut	RG-174	Female	Shielded	Female	SMP Plug	SMA to SMP	Free Hanging (In-Line)	1 GHz	50 Ohms
Amphenol Custom Cable Q-2W0440005.25M	50 Ohms	Copper				SMA Jack	Panel Mount	50 Ohms	Bulkhead - Front Side Nut	RG-316	Female	Shielded	Female	SMP Plug	SMA to SMP	Free Hanging (In-Line)	3 GHz	50 Ohms	9.843 "	250 mm
Amphenol Custom Cable Q-2W0440005.75M	50 Ohms	Copper		750 mm	29.53 "	SMA Jack	Panel Mount	50 Ohms	Bulkhead - Front Side Nut	RG-316	Female	Shielded	Female	SMP Plug	SMA to SMP	Free Hanging (In-Line)	3 GHz	50 Ohms
Amphenol Custom Cable Q-2W0440005084I	50 Ohms	Copper	7 ft	2.1 m	84 in	SMA Jack	Panel Mount	50 Ohms	Bulkhead - Front Side Nut	RG-316	Female	Shielded	Female	SMP Plug	SMA to SMP	Free Hanging (In-Line)	3 GHz	50 Ohms
Amphenol Custom Cable Q-2W0440005006I	50 Ohms	Copper		152.4 mm	6 in	SMA Jack	Panel Mount	50 Ohms	Bulkhead - Front Side Nut	RG-316	Female	Shielded	Female	SMP Plug	SMA to SMP	Free Hanging (In-Line)	3 GHz	50 Ohms
Amphenol Custom Cable Q-2W0440005003I	50 Ohms	Copper		76.2 mm	3 in	SMA Jack	Panel Mount	50 Ohms	Bulkhead - Front Side Nut	RG-316	Female	Shielded	Female	SMP Plug	SMA to SMP	Free Hanging (In-Line)	3 GHz	50 Ohms
Amphenol Custom Cable Q-2W04400030.5M	50 Ohms	Black		50 cm	19.69 "	SMA Jack	Panel Mount	50 Ohms	Bulkhead - Front Side Nut	RG-174	Female	Shielded	Female	SMP Plug	SMA to SMP	Free Hanging (In-Line)	1 GHz	50 Ohms
Amphenol Custom Cable Q-2W0440005002M	50 Ohms	Copper	6.6 ft	2 m	78.7 in	SMA Jack	Panel Mount	50 Ohms	Bulkhead - Front Side Nut	RG-316	Female	Shielded	Female	SMP Plug	SMA to SMP	Free Hanging (In-Line)	3 GHz	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 121.37
		25	$ 119.00
		50	$ 116.64
		100	$ 114.28
		250	$ 111.91

Description

General part information

Q-2W0440 Series

Cable Assembly Coaxial SMA to SMP RG-174 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
