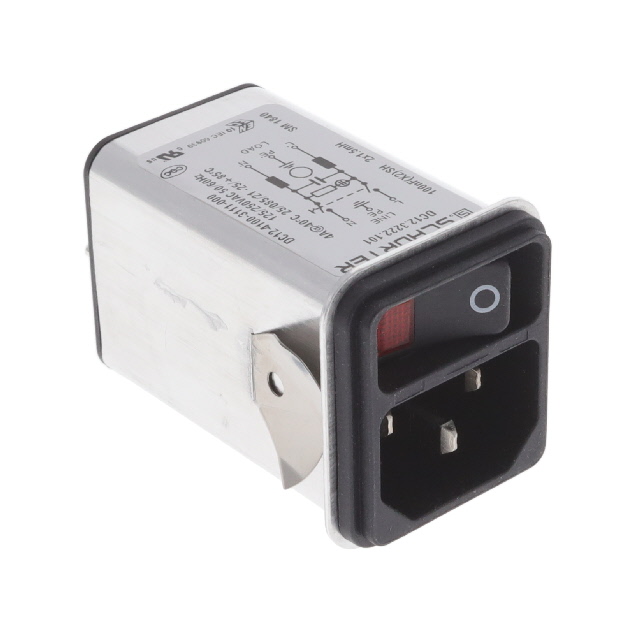

DC12.3222.101
ActiveSCHURTER Inc.
PWR ENT MOD RCPT PANEL QC
Deep-Dive with AI
Search across all available documentation for this part.
DC12.3222.101
ActiveSCHURTER Inc.
PWR ENT MOD RCPT PANEL QC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DC12.3222.101 |
|---|---|
| Connector Type | Receptacle, Male Pins - Module |
| Features | V-Lock Notch, Shielded |
| Mounting Type | Panel Mount, Snap-In |
| Panel Thickness [Max] | 3 mm |
| Panel Thickness [Max] | 0.118 in |
| Panel Thickness [Min] | 0.039 in |
| Panel Thickness [Min] | 1 mm |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 35.72 | |
| 50 | $ 24.98 | |||
| 100 | $ 20.48 | |||
| 500 | $ 17.89 | |||
Description
General part information
DC12.3222 Series
Power Connector Receptacle, Male Pins - Module Panel Mount, Snap-In
