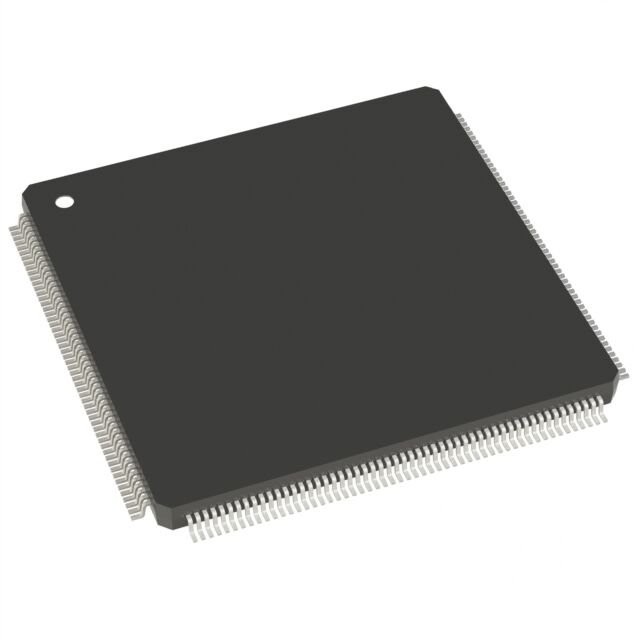

NUC972DF61Y

Active

Nuvoton Technology Corporation

IC MCU 32BIT 68KB FLASH 216LQFP

Search across all available documentation for this part.

Active

Nuvoton Technology Corporation

IC MCU 32BIT 68KB FLASH 216LQFP

Technical Specifications

Parameters and characteristics for this part

Specification	NUC972DF61Y

Connectivity	SmartCard, MMC/SD/SDIO, USB, IrDA, SPI, Ethernet, UART/USART, I2C
Core Processor	ARM926EJ-S
Core Size	32-Bit Single-Core
Data Converters [custom]	12 b
Data Converters [custom]	8
Mounting Type	Surface Mount
Number of I/O	146
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	External
Package / Case	216-LQFP
Peripherals	WDT, DMA, POR, LVR, Brown-out Detect/Reset, LVD, I2S, LCD, PWM
Program Memory Size	68 KB
Program Memory Type	FLASH
RAM Size	56 K
Speed	300 MHz
Supplier Device Package	216-LQFP (24x24)
Voltage - Supply (Vcc/Vdd) [Max]	3.63 V
Voltage - Supply (Vcc/Vdd) [Min]	1.14 V

Part	Oscillator Type	Data Converters [custom]	Data Converters [custom]	Core Size	Package / Case	Program Memory Type	Peripherals	Mounting Type	Number of I/O	Connectivity	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	RAM Size	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Program Memory Size	Core Processor	Speed
Nuvoton Technology Corporation NUC972DF61Y	External	12 b	8	32-Bit Single-Core	216-LQFP	FLASH	Brown-out Detect/Reset DMA I2S LCD LVD LVR POR PWM WDT	Surface Mount	146	Ethernet I2C IrDA MMC/SD/SDIO SmartCard SPI UART/USART USB	216-LQFP (24x24)	85 °C	-40 °C	56 K	3.63 V	1.14 V	68 KB	ARM926EJ-S	300 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	40	$ 11.77

General part information

ARM926EJ-S NUC970 Microcontroller IC 32-Bit Single-Core 300MHz 68KB (68K x 8) FLASH 216-LQFP (24x24)
