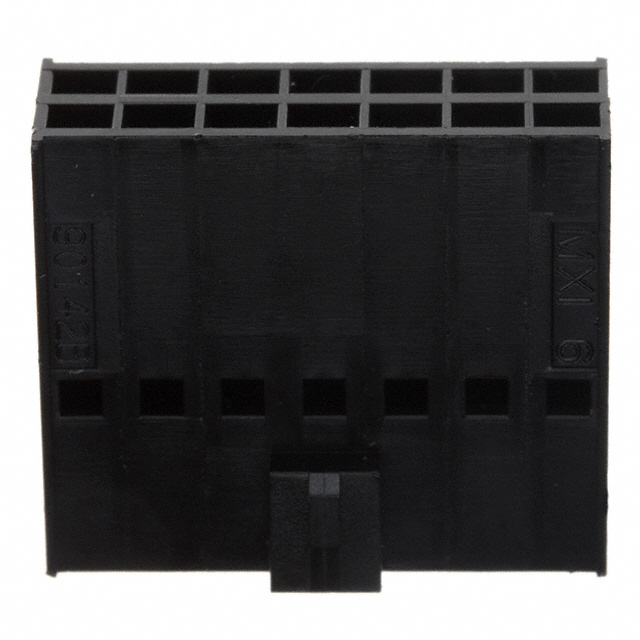

0901420014

Active

Molex

CONN RCPT HSG 14POS 2.54MM

Search across all available documentation for this part.

Active

Molex

CONN RCPT HSG 14POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

2.54mm Pitch C-Grid III Crimp Housing Dual Row, 32 Circuits, Black

Part	Insulation Material	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Mounting Type	Contact Termination	Note	Contact Type	Number of Positions	Connector Type	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing	Number of Rows
Molex 0901420014	Polyphenylene Oxide (PPO)	Locking Ramp	105 ░C	-55 °C	Black	Free Hanging (In-Line)	Crimp	Contacts Not Included	Female Socket	14	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm	2
Molex 0901420012	Polyphenylene Oxide (PPO)	Locking Ramp	105 ░C	-55 °C	Black	Free Hanging (In-Line)	Crimp	Contacts Not Included	Female Socket	12	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm	2
Molex 0901420044	Polyphenylene Oxide (PPO)	Locking Ramp	105 ░C	-55 °C	Black	Free Hanging (In-Line)	Crimp	Contacts Not Included	Female Socket	44	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm	2
Molex 0901420022	Polyphenylene Oxide (PPO)	Locking Ramp	105 ░C	-55 °C	Black	Free Hanging (In-Line)	Crimp	Contacts Not Included	Female Socket	22 positions	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm	2
Molex 0901420026	Polyphenylene Oxide (PPO)	Locking Ramp	105 ░C	-55 °C	Black	Free Hanging (In-Line)	Crimp	Contacts Not Included	Female Socket	26	Receptacle	2.54 mm	0.1 in	0.1 in	2.54 mm	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.54mm Pitch C-Grid III Crimp Housing Dual Row, 32 Circuits, Black

Technical documentation and resources
