GW PSLR31.EM-LR-XX53-1-150-R18

Obsolete

ams-OSRAM USA INC.

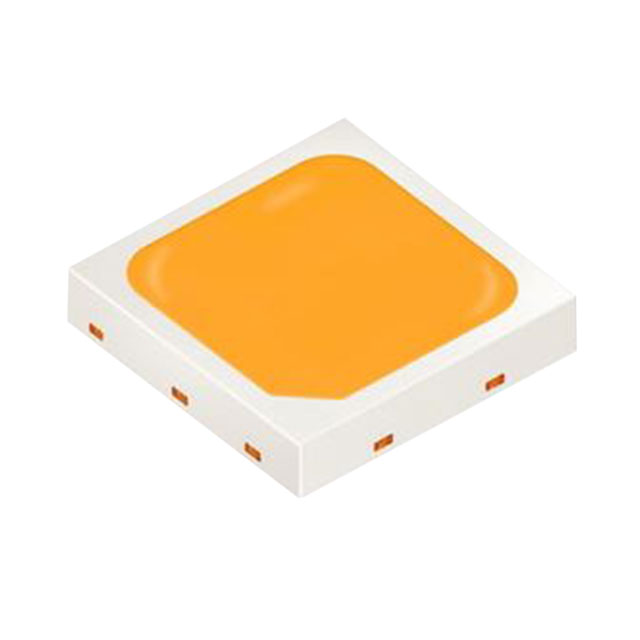

LED DURIS S5 COOL WHT 5000K SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GW PSLR31.EM-LR-XX53-1-150-R18

Obsolete

ams-OSRAM USA INC.

LED DURIS S5 COOL WHT 5000K SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GW PSLR31.EM-LR-XX53-1-150-R18

CCT (K)	5000 K
Color	Cool, White
CRI (Color Rendering Index)	80
Current - Max [Max]	200 mA
Current - Test	150 mA
Flux @ 25°C, Current - Test	135 lm
Height - Seated (Max) [Max]	0.7 mm
Height - Seated (Max) [Max]	0.028 in
Lumens/Watt @ Current - Test	145 lm/W
Mounting Type	Surface Mount
Package / Case	1212
Package / Case	3030 Metric
Size / Dimension [x]	0.118 in
Size / Dimension [x]	3 mm
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Supplier Device Package	SMD
Thermal Resistance of Package [diameter]	17 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	6.2 V

GW PSLR31.EM Series

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Test	Viewing Angle	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Mounting Type	Flux @ 25°C, Current - Test	Color	Thermal Resistance of Package [diameter]	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	CCT (K)	Supplier Device Package	Current - Max [Max]	CRI (Color Rendering Index)	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Thermal Resistance of Package [custom]	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]
ams-OSRAM USA INC. GW PSLR31.EM-LQ-XX56-1-150-R18	0.7 mm	0.028 in	150 mA	120 °	135 lm/W	6.2 V	Surface Mount	126 lm	Warm White	17 °C/W	1212	3030 Metric	0.118 in	3 mm	3 mm	0.118 in	3500 K	SMD	200 mA	80
ams-OSRAM USA INC. GW PSLR31.EM-LBLQ-A838-1-150-R18-AV	0.7 mm	0.028 in					Surface Mount				1212	3030 Metric	0.118 in	3 mm	3 mm	0.118 in		SMD
ams-OSRAM USA INC. GW PSLR31.EM-LR-XX53-1-150-R18	0.7 mm	0.028 in	150 mA	120 °	145 lm/W	6.2 V	Surface Mount	135 lm	Cool White	17 °C/W	1212	3030 Metric	0.118 in	3 mm	3 mm	0.118 in	5000 K	SMD	200 mA	80
ams-OSRAM USA INC. GW PSLR31.EM-LQLR-A232-1-150-R18-MC	0.7 mm	0.028 in	150 mA	120 °	141 lm/W	6.2 V	Surface Mount		Cool White	17 °C/W	1212	3030 Metric	0.118 in	3 mm	3 mm	0.118 in	5700 K	SMD	200 mA	80	140 lm	121 lm
ams-OSRAM USA INC. GW PSLR31.EM-LPLQ-XX58-1-150-R18-KON	0.7 mm	0.028 in	150 mA	120 °	130 lm/W	6.2 V	Surface Mount	121 lm	Warm White		1212	3030 Metric	0.118 in	3 mm	3 mm	0.118 in	2700 K	1212	200 mA	80			12 °C/W	130 lm	112 lm
ams-OSRAM USA INC. GW PSLR31.EM-LRLS-XX51-1-150-R18	0.7 mm	0.028 in	150 mA	120 °	151 lm/W	6.2 V	Surface Mount		Cool White	17 °C/W	1212	3030 Metric	0.118 in	3 mm	3 mm	0.118 in	6500 K	SMD	200 mA	80
ams-OSRAM USA INC. GW PSLR31.EM-LRLS-XX35-CF-150-R18-STE	0.7 mm	0.028 in					Surface Mount				1212	3030 Metric	0.118 in	3 mm	3 mm	0.118 in		SMD
ams-OSRAM USA INC. GW PSLR31.EM-LR-A434-1-150-R18	0.7 mm	0.028 in	150 mA	120 °	145 lm/W	6.2 V	Surface Mount	135 lm	Neutral White	17 °C/W	1212	3030 Metric	0.118 in	3 mm	3 mm	0.118 in		2-SMD	200 mA	80
ams-OSRAM USA INC. GW PSLR31.EM-LR-XX57-1-150-R18-MC	0.7 mm	0.028 in	150 mA	120 °	145 lm/W	6.2 V	Surface Mount	135 lm	Warm White		1212	3030 Metric	0.118 in	3 mm	3 mm	0.118 in		1212	200 mA	80			12 °C/W
ams-OSRAM USA INC. GW PSLR31.EM-LPLR-XX58-1	0.7 mm	0.028 in	150 mA	120 °	135 lm/W	6.2 V	Surface Mount	126 lm	Warm White	17 °C/W	1212	3030 Metric	0.118 in	3 mm	3 mm	0.118 in	2700 K	SMD	200 mA	80

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

GW PSLR31.EM Series

LED Lighting DURIS® S 5 White, Cool 5000K 6.2V 150mA 120° 1212 (3030 Metric)
