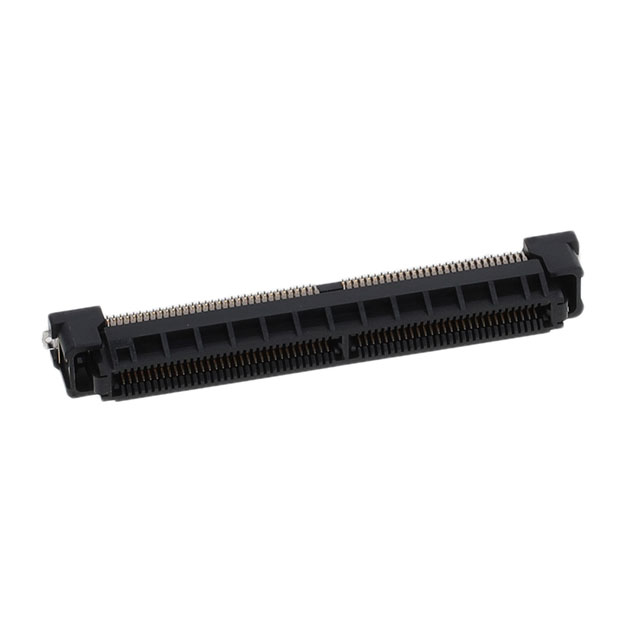

FX27-120S-0.8SV

Active

Hirose Electric USA, Inc.

CONN PCI EXP FMALE 120POS 0.031

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN PCI EXP FMALE 120POS 0.031

Technical Specifications

Parameters and characteristics for this part

Specification	FX27-120S-0.8SV

Card Type	PCI Express™
Color	Black
Contact Finish	Gold
Contact Material	Copper Alloy
Features	Pick and Place, Board Guide, Solder Retention
Gender	Female
Material - Insulation	Nylon, Polyamide (PA)
Mounting Type	Surface Mount
Number of Positions	120
Number of Positions/Bay/Row [custom]	60
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.8 mm
Pitch [x]	0.031 in
Read Out	Dual
Termination	Solder

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions/Bay/Row [custom]	Termination	Pitch [x]	Pitch [x]	Gender	Contact Finish	Mounting Type	Contact Material	Features	Card Type	Number of Positions	Material - Insulation	Color	Number of Rows	Read Out
Hirose Electric USA, Inc. FX27-120S-0.8SV	85 °C	-55 °C	60	Solder	0.8 mm	0.031 in	Female	Gold	Surface Mount	Copper Alloy	Board Guide Pick and Place Solder Retention	PCI Express™	120	Nylon Polyamide (PA)	Black	2	Dual
Hirose Electric USA, Inc. FX27-100S-0.8SV	85 °C	-55 °C	50	Solder	0.8 mm	0.031 in	Female	Gold	Surface Mount	Copper Alloy	Board Guide Pick and Place Solder Retention	PCI Express™	100	Nylon Polyamide (PA)	Black	2	Dual

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

120 Position Female Connector PCI Express™ Gold 0.031" (0.80mm) Black
