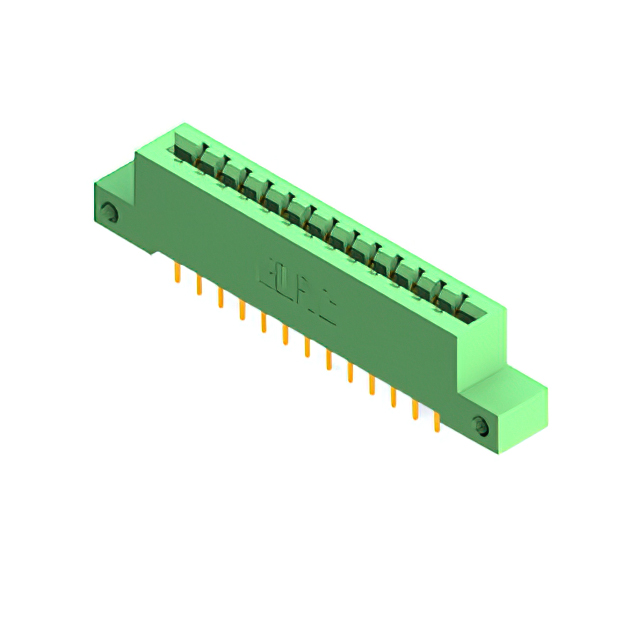

837-026-540-212
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 26POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-026-540-212
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 26POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-026-540-212 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Positions/Bay/Row [custom] | 13 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
837-026 Series
...
| Part | Mounting Type | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Read Out | Color | Contact Type | Contact Material | Termination Rows | Number of Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Type | Gender | Material - Insulation | Contact Finish | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Dual | Green | Cantilever | Copper Alloy | 2 | 2 | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Non Specified - Dual Edge | Female | Diallyl Phthalate (DAP) | Gold | 26 | 125 °C | -40 °C | 13 | |
EDAC Inc. | Through Hole | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Single | Green | Cantilever | Copper Alloy | 1 | 1 | M3 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Female | Diallyl Phthalate (DAP) | Gold | 26 | 125 °C | -40 °C | 26 | |||
EDAC Inc. | Through Hole Right Angle | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Single | Green | Cantilever | Copper Alloy | 1 | 1 | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | Non Specified - Single Edge | Female | Diallyl Phthalate (DAP) | Gold | 26 | 125 °C | -40 °C | 26 | |
EDAC Inc. | Through Hole | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Dual | Green | Cantilever | Copper Alloy | 2 | 2 | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Non Specified - Dual Edge | Female | Diallyl Phthalate (DAP) | Gold | 26 | 125 °C | -40 °C | 13 | |
EDAC Inc. | Through Hole | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Dual | Green | Cantilever | Copper Alloy | 2 | 2 | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | Female | Diallyl Phthalate (DAP) | Gold | 26 | 125 °C | -40 °C | 13 | |||
EDAC Inc. | Through Hole | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Single | Green | Cantilever | Copper Alloy | 1 | 1 | Non Specified - Single Edge | Female | Diallyl Phthalate (DAP) | Gold | 26 | 125 °C | -40 °C | 26 | ||||
EDAC Inc. | Through Hole | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Dual | Green | Cantilever | Copper Alloy | 2 | 2 | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Non Specified - Dual Edge | Female | Diallyl Phthalate (DAP) | Gold | 26 | 125 °C | -40 °C | 13 | |
EDAC Inc. | Board Edge Straddle Mount | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Dual | Green | Cantilever | Copper Alloy | 2 | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | Female | Diallyl Phthalate (DAP) | Gold | 26 | 125 °C | -40 °C | 13 | Card Extender | ||
EDAC Inc. | Through Hole | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Dual | Green | Cantilever | Copper Alloy | 2 | 2 | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Non Specified - Dual Edge | Female | Diallyl Phthalate (DAP) | Gold | 26 | 125 °C | -40 °C | 13 | |
EDAC Inc. | Through Hole | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Dual | Green | Cantilever | Copper Alloy | 2 | 2 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Non Specified - Dual Edge | Female | Diallyl Phthalate (DAP) | Gold | 26 | 125 °C | -40 °C | 13 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 64.39 | |
Description
General part information
837-026 Series
26 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
