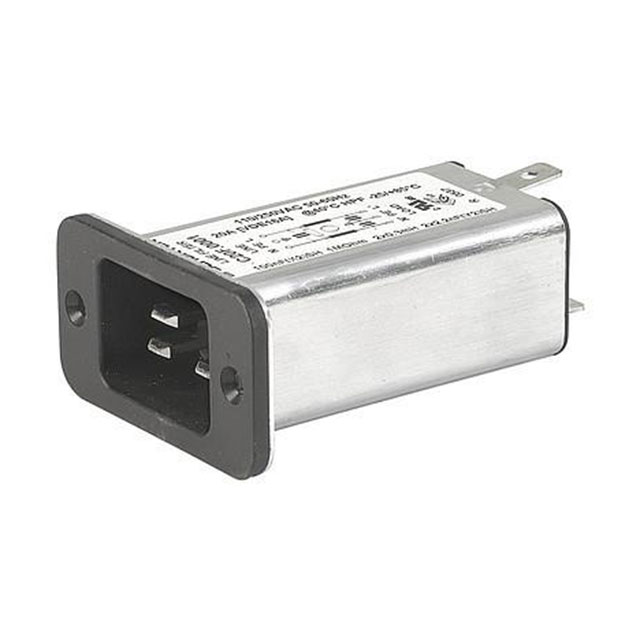

C20F-0321-1100-1000

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C20 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C20 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	C20F-0321-1100-1000

Accomodates a Fuse	False
Approval Agency	VDE, CQC, cULus
Connector Style	IEC 320-C20
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	16 A
Current Rating - Filter	16 A, 20 A
Features	V-Lock Notch, Shielded
Filter Type	Filtered (EMI, RFI) - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	34.8 mm
Panel Cutout Dimensions [y]	26.8 mm
Panel Thickness	8 mm
Panel Thickness	0.315 in
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Voltage Rating - Appliance Inlet	Mounting Type	Ingress Protection	Accomodates a Fuse	Current Rating - Appliance Inlet	Approval Agency	Connector Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Panel Thickness	Panel Thickness	Connector Type	Filter Type	Features	Material Flammability Rating	Current Rating - Filter	Termination	Termination	Termination
SCHURTER Inc. C20F-0321-1100-1000	250 VAC	Flange Panel Mount	IP40		16 A	CQC cULus VDE	IEC 320-C20	26.8 mm	34.8 mm	8 mm	0.315 in	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	Shielded V-Lock Notch	UL94 V-0	16 A 20 A	0.25 in	6.3 mm	Quick Connect

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C20 Panel Mount, Flange
