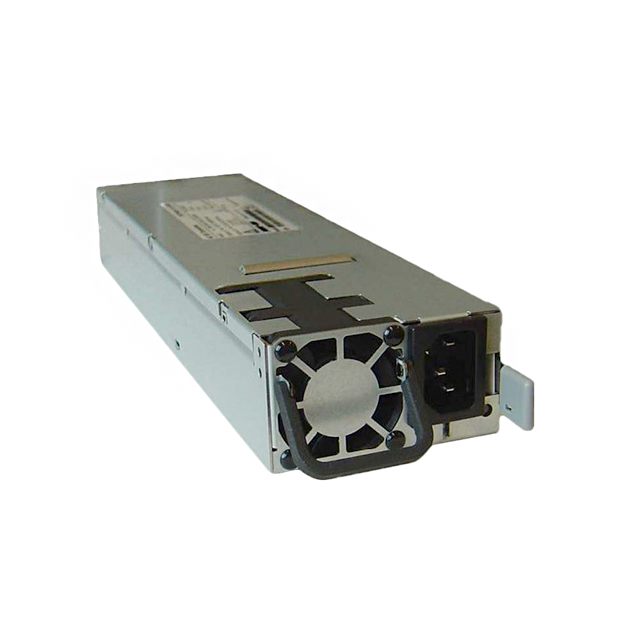

PET2000-12-074RA

Active

EOS Power India Private Ltd

AC/DC CONVERTER 12V 2000W

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

AC/DC CONVERTER 12V 2000W

Technical Specifications

Parameters and characteristics for this part

Specification	PET2000-12-074RA

Applications	ITE (Commercial)
Approval Agency	CE, CB
Current - Output 1	167 A
Efficiency	92.8 %
Features	PMBus™, Standby Output, Hot Swappable, PFC, I2C Interface, Remote Sense, Load Sharing
Mounting Type	Rack Mount
Number of Outputs	1
Power (Watts)	2000 W
Size / Dimension [x]	265 mm
Size / Dimension [x]	10.43 in
Size / Dimension [y]	2.89 in
Size / Dimension [y]	73.5 mm
Size / Dimension [z]	1.57 "
Size / Dimension [z]	40 mm
Type	Front End
Voltage - Input [Max]	264 VAC, 140 VAC
Voltage - Input [Min]	180 VAC, 90 VAC
Voltage - Isolation	4.242 kV
Voltage - Output 1	12 V

Part	Features	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 1	Number of Outputs	Power (Watts)	Efficiency	Current - Output 1	Voltage - Isolation	Type	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]
EOS Power India Private Ltd PET2000-12-074RA	Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output	Rack Mount	140 VAC 264 VAC	90 VAC 180 VAC	12 V	1	2000 W	92.8 %	167 A	4.242 kV	Front End	ITE (Commercial)	2.89 in	265 mm	1.57 "	40 mm	73.5 mm	10.43 in	CB CE
EOS Power India Private Ltd PET2000-12-074NA	Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output	Rack Mount	140 VAC 264 VAC	90 VAC 180 VAC	12 V	1	2000 W	92.8 %	167 A	4.242 kV	Front End	ITE (Commercial)	2.89 in	265 mm	1.57 "	40 mm	73.5 mm	10.43 in	CB CE
EOS Power India Private Ltd PET2000-12-074RD		Rack Mount			12 V		2000 W	95 %			Front End	ITE (Commercial)	2.89 in	265 mm	1.57 "	40 mm	73.5 mm	10.43 in	CQC EAC NEMKO	72 V	40 °C	0 °C	167 A	40 V
EOS Power India Private Ltd PET2000-NAS446	Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output	Rack Mount	140 VAC 264 VAC	90 VAC 180 VAC	12 V	1	2000 W	92.8 %	167 A	4.242 kV	Front End	ITE (Commercial)	2.89 in	265 mm	1.57 "	40 mm	73.5 mm	10.43 in	CB CE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 537.50

General part information

Front End AC DC Converters 1 Output 12V 90 ~ 140 VAC, 180 ~ 264 VAC Input

Technical documentation and resources

No documents available
