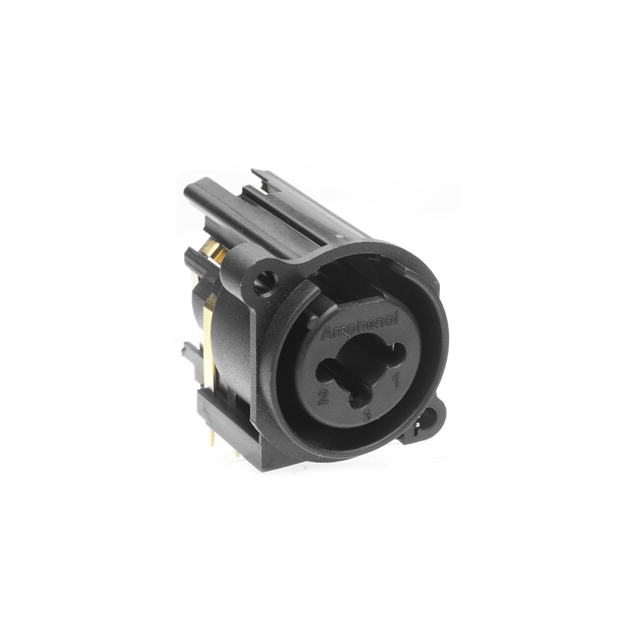

ACJC10AV2L BULK

Active

Amphenol Sine Systems Corp

1/4" STEREO/XLR PCB VERT 10 SKT

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

1/4" STEREO/XLR PCB VERT 10 SKT

Technical Specifications

Parameters and characteristics for this part

Specification	ACJC10AV2L BULK

Body Color	Black
Connector Type	Phone Jack, Dual
Contact Material	Bronze, Brass
Contact Material - Plating	Gold, Silver
Current Rating (Amps)	7.5 A
Features	Board Guide
Gender	Female
Housing Material	Glass Filled, Polyamide (PA66), Nylon 6/6
Internal Switch(s)	Three Switches
Mounting Type	Through Hole, Panel Mount
Number of Positions/Contacts [custom]	3
Number of Positions/Contacts [custom]	11
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Hole Size	0.937 "
Panel Hole Size	23.8 mm
Shielding	Unshielded
Signal Lines	Stereo
Termination	Kinked Pin, Solder

Part	Mounting Type	Internal Switch(s)	Signal Lines	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Gender	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Contact Material - Plating	Connector Type	Panel Hole Size	Panel Hole Size	Features	Body Color	Termination	Current Rating (Amps)	Shielding	Housing Material
Amphenol Sine Systems Corp ACJC10AV2L BULK	Panel Mount Through Hole	Three Switches	Stereo	70 °C	-25 °C	Brass Bronze	Female	3	11	Gold Silver	Dual Phone Jack	0.937 "	23.8 mm	Board Guide	Black	Kinked Pin Solder	7.5 A	Unshielded	Glass Filled Nylon 6/6 Polyamide (PA66)
Amphenol Sine Systems Corp ACJC10S BULK	Panel Mount Through Hole	Three Switches	Stereo	70 °C	-25 °C	Brass Bronze	Female	3	11	Gold Silver	Dual Phone Jack	0.937 "	23.8 mm	Board Guide	Black	Solder	7.5 A	Unshielded	Glass Filled Nylon 6/6 Polyamide (PA66)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1000	$ 2.80

General part information

6.35mm (0.250", 1/4") - Headphone Phone Jack, Dual Stereo (3 Conductor, TRS) Connector Kinked Pin, Solder
