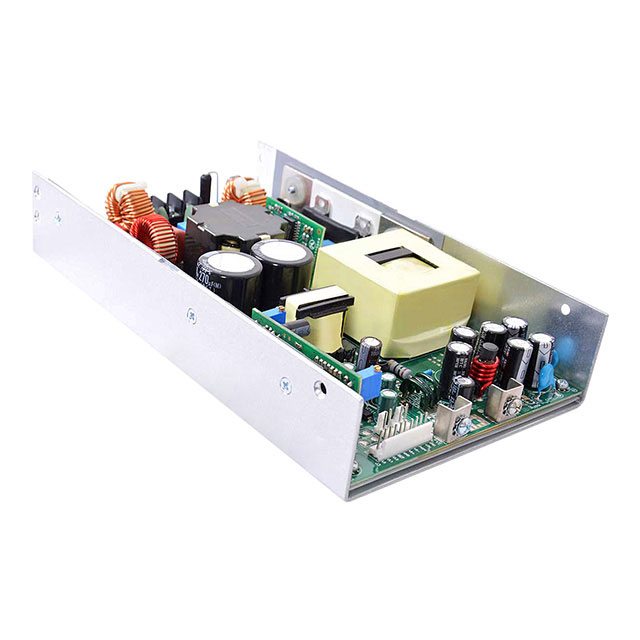

MBC800-1T24

Obsolete

EOS Power India Private Ltd

AC/DC CONVERTER 24V 600W

Search across all available documentation for this part.

Obsolete

EOS Power India Private Ltd

AC/DC CONVERTER 24V 600W

Technical Specifications

Parameters and characteristics for this part

Specification	MBC800-1T24

Applications	Medical
Approval Agency	cUL, NEMKO, UL, CE
Current - Output 1	25 A
Efficiency	93 %
Features	Load Sharing, PFC, Adjustable Output, Remote On/Off, Universal Input, Remote Sense, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	800 W, 600 W
Size / Dimension [x]	216 mm
Size / Dimension [x]	8.5 in
Size / Dimension [y]	127 mm
Size / Dimension [y]	5 "
Size / Dimension [z]	41 mm
Size / Dimension [z]	1.61 "
Type	Open Frame
Voltage - Input [Max]	264 VAC, 390 VDC
Voltage - Input [Min]	120 VDC, 85 VAC
Voltage - Isolation	4.245 kV
Voltage - Output 1	24 V

Part	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Type	Minimum Load Required	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 1	Number of Outputs	Features	Power (Watts)	Voltage - Isolation	Mounting Type	Approval Agency	Applications
EOS Power India Private Ltd MBC800-1T48	48 V	216 mm	41 mm	1.61 "	127 mm	8.5 in	5 "	93 %	Open Frame		85 VAC 120 VDC	264 VAC 390 VDC	12.5 A	1	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	600 W 800 W	4.245 kV	Chassis Mount	CE cUL NEMKO UL	Medical
EOS Power India Private Ltd MBC800-1T24	24 V	216 mm	41 mm	1.61 "	127 mm	8.5 in	5 "	93 %	Open Frame		85 VAC 120 VDC	264 VAC 390 VDC	25 A	1	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	600 W 800 W	4.245 kV	Chassis Mount	CE cUL NEMKO UL	Medical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 317.71

General part information

Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC, 120 ~ 390 VDC Input
