Q-2Z05D0008.75M

Active

Amphenol Custom Cable

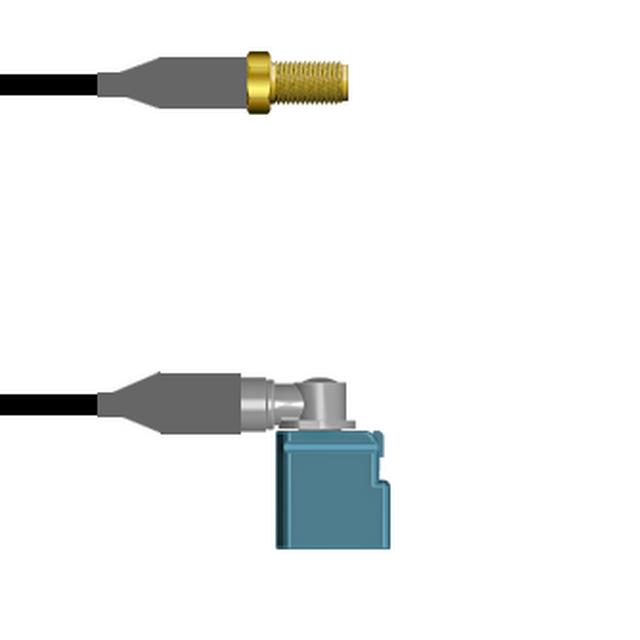

COAX CBL SMA TO FAKRA III 29.5"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL SMA TO FAKRA III 29.5"

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2Z05D0008.75M

1st Connector	SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	Fakra III (Gen 3.0) Jack, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-58
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	SMA to Fakra III

Part	Style	Frequency - Max [Max]	1st Contact Gender	2nd Connector	Features	2nd Contact Gender	1st Connector Mounting Type	Connector Impedance	Cable Impedance	Overall Impedance	Color	Length	Length	1st Connector	2nd Connector Mounting Type	Cable Type
Amphenol Custom Cable Q-2Z05D0008.75M	SMA to Fakra III	1 GHz	Female	Fakra III (Gen 3.0) Jack Right Angle	Shielded	Female	Free Hanging (In-Line)	50 Ohms	50 Ohms	50 Ohms	Black	29.53 "	750 mm	SMA Jack	Free Hanging (In-Line)	RG-58

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to Fakra III RG-58 29.53" (750.00mm)
