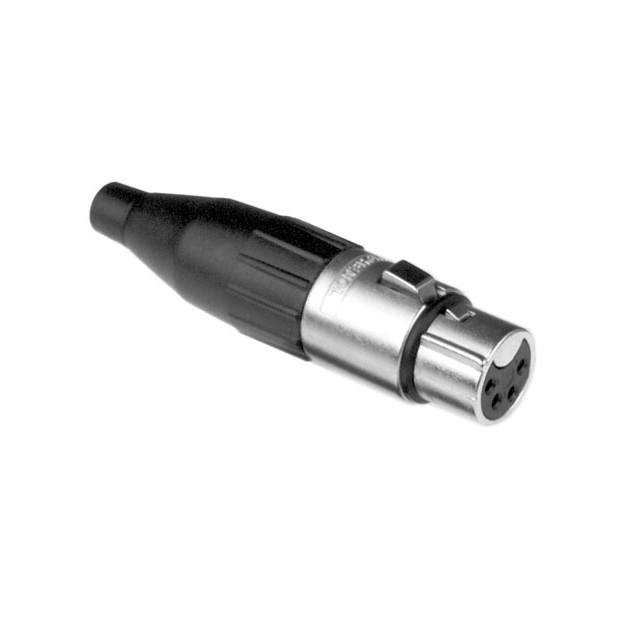

AC4F BULK

Active

Amphenol Sine Systems Corp

METAL PLUG STR CORD 4 SKT BULK

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

METAL PLUG STR CORD 4 SKT BULK

Technical Specifications

Parameters and characteristics for this part

Specification	AC4F BULK

Applications	Audio
Backshell Material, Plating	Polyphenylene Ether (PPE)
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Brass
Current Rating (Amps)	10 A
Fastening Type	Latch Lock
Features	Cable Clamp, Backshell
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	XLR
Shielding	Unshielded

Part	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Features	Mounting Type	Shielding	Shell Material	Color	Material Flammability Rating	Number of Positions	Contact Finish - Mating	Shell Size - Insert	Backshell Material, Plating	Contact Material	Ingress Protection	Primary Material	Current Rating (Amps)	Fastening Type	Applications	Connector Type	Shell Finish
Amphenol Sine Systems Corp AC4F BULK	-25 °C	75 ░C	Keyed	Backshell Cable Clamp	Free Hanging (In-Line)	Unshielded	Zinc Die Cast	Silver	UL94 V-0	4	Silver	XLR	Polyphenylene Ether (PPE)	Brass	IP40	Metal	10 A	Latch Lock	Audio	Female Sockets Plug	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Female Sockets Solder Cup
