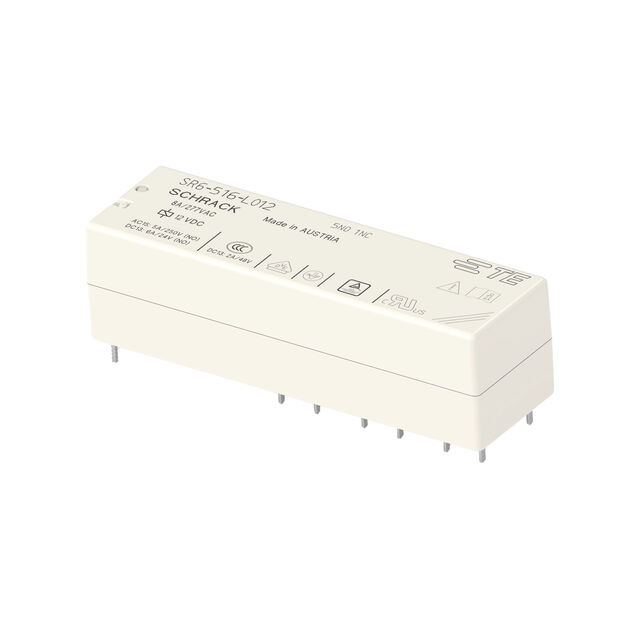

2-1558738-4
ActiveTE Connectivity Potter & Brumfield Relays
SR6-516-L012
Deep-Dive with AI
Search across all available documentation for this part.
2-1558738-4
ActiveTE Connectivity Potter & Brumfield Relays
SR6-516-L012
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1558738-4 |
|---|---|
| Approval Agency | cURus, TUV, VDE |
| Coil Current | 58.5 mA |
| Coil Insulation | Class F |
| Coil Resistance | 205 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | 6PST-5NO/1NC (5 Form A, 1 Form B) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 8 A |
| Load - Max Switching | 3200 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 21.46 | |
| 10 | $ 19.11 | |||
| 30 | $ 18.08 | |||
| 50 | $ 17.62 | |||
| 100 | $ 17.02 | |||
| 250 | $ 16.31 | |||
Description
General part information
SR6-516 Series
General Purpose Relay 6PST-5NO/1NC (5 Form A, 1 Form B) 12VDC Coil Through Hole
Documents
Technical documentation and resources
No documents available
