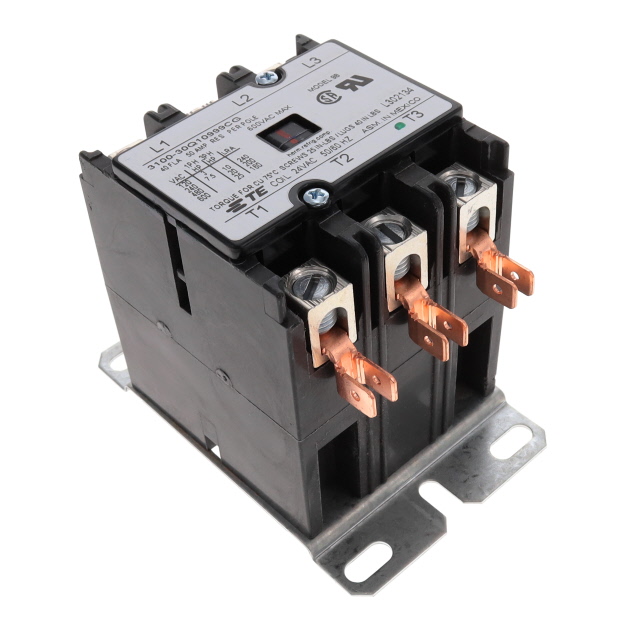

3100-30Q10999CG

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY CONTACTOR 3PST 40A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3100-30Q10999CG

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY CONTACTOR 3PST 40A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3100-30Q10999CG

Coil Power	5 VA
Coil Resistance	7 Ohms
Coil Voltage	24 VAC
Contact Form	DM
Contact Form	3PST-NO
Contact Form	3 Form X
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	40 A
Features	Insulation - Class B
Mounting Type	Chassis Mount
Must Operate Voltage	18 VAC
Must Release Voltage	6 VAC
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-40 °C
Switching Voltage	600 VAC
Termination Style	Screw Terminal, Quick Connect
Termination Style	0.25 in

3100-30 Series

Part	Must Operate Voltage	Coil Voltage	Contact Material	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Contact Form	Contact Form	Must Release Voltage	Mounting Type	Termination Style	Termination Style	Switching Voltage	Coil Power	Contact Rating (Current)	Features	Coil Current
TE Connectivity Potter & Brumfield Relays 3100-30J16999CJ	93 VAC	120 VAC	Silver Cadmium Oxide (AgCdO)	45 Ohms	65 °C	-40 °C	DM	3PST-NO	3 Form X	20 VAC	Chassis Mount	Quick Connect Screw Terminal	0.25 in	600 VAC	14 VA	50 A	Insulation - Class B
TE Connectivity Potter & Brumfield Relays 3100-30Q10999CG	18 VAC	24 VAC	Silver Cadmium Oxide (AgCdO)	7 Ohms	65 °C	-40 °C	DM	3PST-NO	3 Form X	6 VAC	Chassis Mount	Quick Connect Screw Terminal	0.25 in	600 VAC	5 VA	40 A	Insulation - Class B
TE Connectivity Potter & Brumfield Relays 3100-30K16999AT	177 VAC	240 VAC	Silver Cadmium Oxide (AgCdO)	180 Ohms	65 °C	-40 °C	DM	3PST-NO	3 Form X	40 VAC	Chassis Mount	Quick Connect Screw Terminal	0.25 in	600 VAC	320 W	50 A	Insulation - Class B
TE Connectivity Potter & Brumfield Relays 3100-30U7999CY	177 VAC	240 VAC	Silver Cadmium Oxide (AgCdO)	720 Ohms	65 °C	-40 °C	DM	3PST-NO	3 Form X	40 VAC	Chassis Mount	Quick Connect Screw Terminal	0.25 in	600 VAC	5 VA	20 A	Insulation - Class B
TE Connectivity Potter & Brumfield Relays 3100-30V10999CG	220 VAC	277 VAC	Silver Cadmium Oxide (AgCdO)	950 Ohms	65 °C	-40 °C	DM	3PST-NO	3 Form X	65 VAC	Chassis Mount	Quick Connect Screw Terminal	0.25 in	600 VAC	5 VA	40 A	Insulation - Class B
TE Connectivity Potter & Brumfield Relays 3100-30I17999CJ	18 VAC	24 VAC	Silver Cadmium Oxide (AgCdO)	2.4 Ohms	65 °C	-40 °C	DM	3PST-NO	3 Form X	6 VAC	Chassis Mount	Quick Connect Screw Terminal	0.25 in	600 VAC	14 VA	60 A	Insulation - Class B
TE Connectivity Potter & Brumfield Relays 3100-30Q9999B	18 VAC	24 VAC	Silver Cadmium Oxide (AgCdO)	7 Ohms	65 °C	-40 °C	DM	3PST-NO	3 Form X	6 VAC	Chassis Mount	Quick Connect Screw Terminal	0.25 in	600 VAC	82 W	30 A	Insulation - Class B	3.4 A
TE Connectivity Potter & Brumfield Relays 3100-30U9999CY	177 VAC	240 VAC	Silver Cadmium Oxide (AgCdO)	720 Ohms	65 °C	-40 °C	DM	3PST-NO	3 Form X	40 VAC	Chassis Mount	Quick Connect Screw Terminal	0.25 in	600 VAC	5 VA	30 A	Insulation - Class B
TE Connectivity Potter & Brumfield Relays 3100-30U9999CG	177 VAC	240 VAC	Silver Cadmium Oxide (AgCdO)	720 Ohms	65 °C	-40 °C	DM	3PST-NO	3 Form X	40 VAC	Chassis Mount	Quick Connect Screw Terminal	0.25 in	600 VAC	5 VA	30 A	Insulation - Class B
TE Connectivity Potter & Brumfield Relays 3100-30J16999BM	93 VAC	120 VAC	Silver Cadmium Oxide (AgCdO)	45 Ohms	65 °C	-40 °C	DM	3PST-NO	3 Form X	20 VAC	Chassis Mount	Quick Connect Screw Terminal	0.25 in	600 VAC	320 W	50 A	Insulation - Class B	2.7 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

3100-30 Series

RELAY CONTACTOR 3PST 40A 24V
