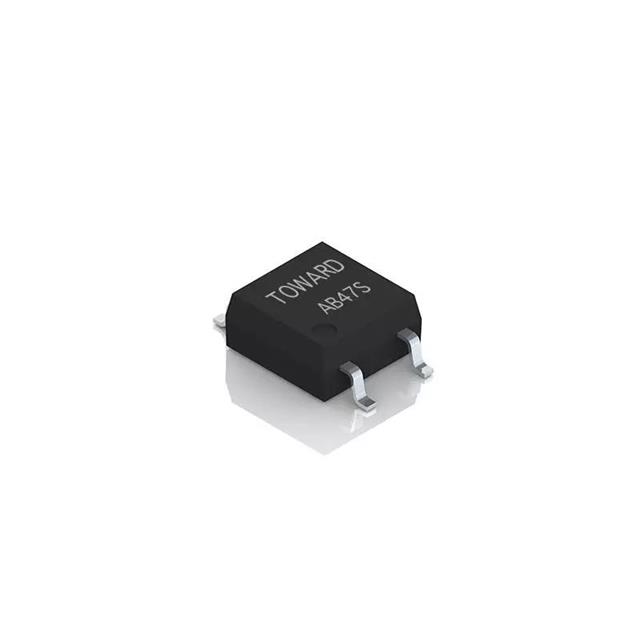

AB47S-H-R1
ActiveBright Toward Industrial Co., Ltd.
SSR RELAY SPST-NO 0-80V T&R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AB47S-H-R1
ActiveBright Toward Industrial Co., Ltd.
SSR RELAY SPST-NO 0-80V T&R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AB47S-H-R1 |
|---|---|
| Load Current | 1.25 A |
| Mounting Type | Surface Mount |
| On-State Resistance (Max) | 160 mOhms |
| Output Type | DC, AC |
| Package / Case | 4-SOP |
| Package / Case | 0.173 in |
| Package / Case | 4.4 mm |
| Supplier Device Package | 4-SOP |
| Termination Style | Gull Wing |
| Voltage - Input | 1.37 VDC |
| Voltage - Load [Max] | 80 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.59 | |
| 10 | $ 2.26 | |||
| 25 | $ 2.15 | |||
| 50 | $ 2.06 | |||
| 100 | $ 1.98 | |||
| 250 | $ 1.87 | |||
| 500 | $ 1.80 | |||
| Digi-Reel® | 1 | $ 2.59 | ||
| 10 | $ 2.26 | |||
| 25 | $ 2.15 | |||
| 50 | $ 2.06 | |||
| 100 | $ 1.98 | |||
| 250 | $ 1.87 | |||
| 500 | $ 1.80 | |||
| Tape & Reel (TR) | 1000 | $ 1.73 | ||
| 2000 | $ 1.66 | |||
| 3000 | $ 1.62 | |||
| 5000 | $ 1.57 | |||
Description
General part information
AB47S Series
Solid State SPST-NO (1 Form A) 4-SOP (0.173", 4.40mm)
