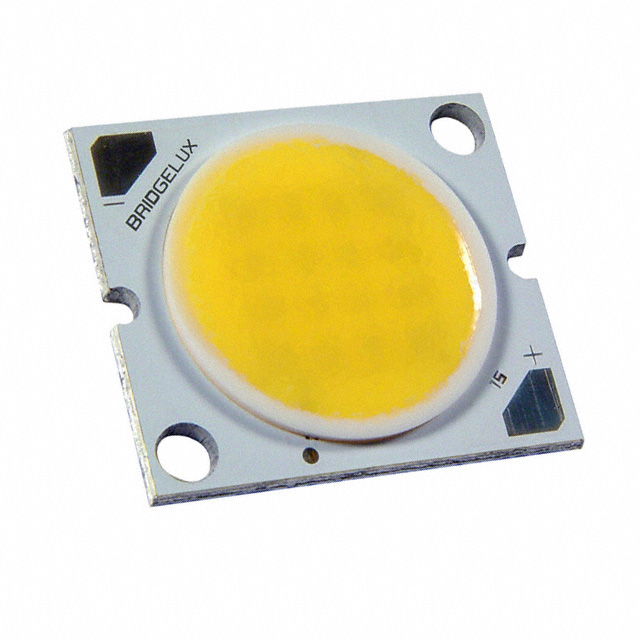

BXRA-W1202-00Q00

Obsolete

BRIDGELUX

LED COB ES WARM WHT RECT 3000K

Search across all available documentation for this part.

Obsolete

BRIDGELUX

LED COB ES WARM WHT RECT 3000K

Technical Specifications

Parameters and characteristics for this part

Specification	BXRA-W1202-00Q00

Color	White, Warm
Configuration	Rectangle
CRI (Color Rendering Index)	82
Current - Max [Max]	2.5 A
Current - Test	1.2 A
Height [z]	3.5 mm
Lens Type	Domed
Lumens/Watt @ Current - Test	73 lm/W
Luminous Flux @ Current/Temperature	1320 lm
Size / Dimension [x]	22.8 mm
Size / Dimension [y]	25.8 mm
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	15.1 V

Part	Type	Lens Type	Viewing Angle	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Configuration	Current - Test	Current - Max [Max]	Height [z]	Color	CRI (Color Rendering Index)
BRIDGELUX BXRA-W1202-00Q00	Chip On Board (COB)	Domed	120 °	73 lm/W	1320 lm	15.1 V	25.8 mm	22.8 mm	Rectangle	1.2 A	2.5 A	3.5 mm	Warm White	82

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) ES White, Warm Rectangle
