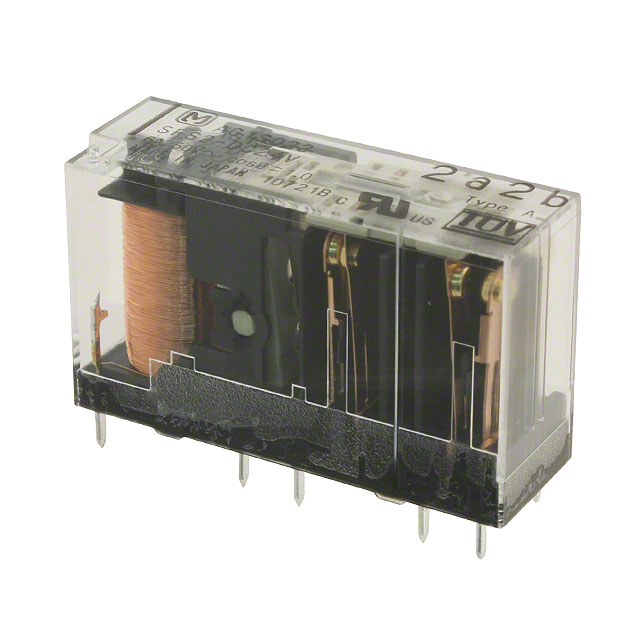

SFS3-DC12V
ActivePanasonic Electric Works
RELAY SAFETY 4PST 6A 12V
Deep-Dive with AI
Search across all available documentation for this part.
SFS3-DC12V
ActivePanasonic Electric Works
RELAY SAFETY 4PST 6A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFS3-DC12V |
|---|---|
| Coil Current | 30 mA |
| Coil Power | 360 mW |
| Coil Resistance | 400 Ohms |
| Coil Voltage | 12 VDC |
| Contact Form | 4PST-3NO/1NC (3 Form A, 1 Form B) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 6 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 20 ms |
| Switching Voltage [Max] | 30 VDC, 250 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 21.63 | |
| 10 | $ 19.23 | |||
| 25 | $ 18.27 | |||
| 50 | $ 17.31 | |||
| 100 | $ 16.35 | |||
| 250 | $ 14.90 | |||
| 450 | $ 13.94 | |||
Description
General part information
SFS3-D Series
RELAY SAFETY 4PST 6A 12V
