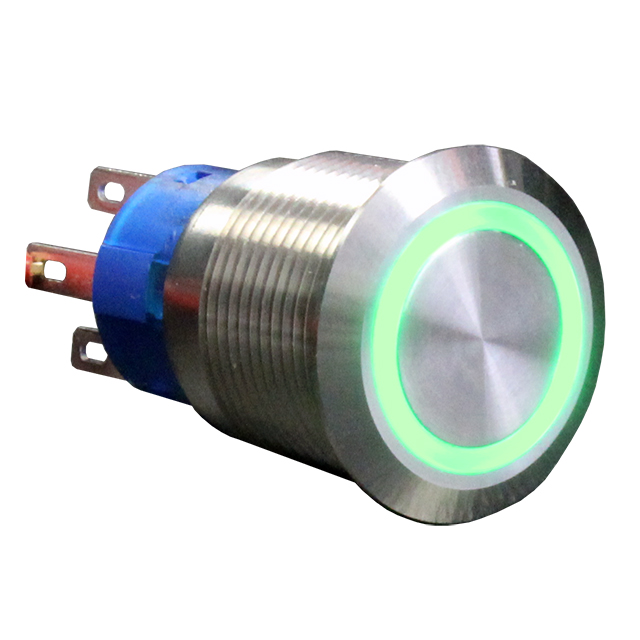

AHU1NBSG12

Active

CIT Relay and Switch

SWITCH PB SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AHU1NBSG12

Active

CIT Relay and Switch

SWITCH PB SPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AHU1NBSG12

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	3 A
Electrical Life	50000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Panel Cutout Dimensions [diameter]	19 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V

AHU1 Series

Part	Panel Cutout Dimensions [diameter]	Electrical Life	Current Rating (Amps)	Ingress Protection	Mounting Type	Termination Style	Termination Style	Termination Style	Switch Function	Actuator Type	Type	Actuator Marking	Illumination Type, Color	Mechanical Life	Color - Actuator/Cap	Voltage Rating - AC	Circuit	Illumination Voltage (Nominal)	Features
CIT Relay and Switch AHU1LKSGN	19 mm	50000 Cycles	3 A	IP67 - Dust Tight Waterproof	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	On-On	Button Flush Round	Anti-Vandal Illuminated	No Marking	Green LED	500000 Cycles	Silver	125 V	SPDT
CIT Relay and Switch AHU1NBSG12	19 mm	50000 Cycles	3 A	IP67 - Dust Tight Waterproof	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	Button Flush Round	Anti-Vandal Illuminated	No Marking	Green LED	1000000 Cycles	Silver	125 V	SPDT	12 VDC
CIT Relay and Switch AHU1NKSBN	19 mm	50000 Cycles	3 A	IP67 - Dust Tight Waterproof	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	Button Flush Round	Anti-Vandal Illuminated	No Marking	Blue LED	1000000 Cycles	Silver	125 V	SPDT		Stainless Steel
CIT Relay and Switch AHU1NKSGN	19 mm	50000 Cycles	3 A	IP67 - Dust Tight Waterproof	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	Button Flush Round	Anti-Vandal Illuminated	No Marking	Green LED	1000000 Cycles	Silver	125 V	SPDT
CIT Relay and Switch AHU1LBBGN	19 mm	50000 Cycles	3 A	IP67 - Dust Tight Waterproof	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	On-On	Button Flush Round	Anti-Vandal Illuminated	No Marking	Green LED	500000 Cycles	Black	125 V	SPDT
CIT Relay and Switch AHU1NKSRN	19 mm	50000 Cycles	3 A	IP67 - Dust Tight Waterproof	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	Button Flush Round	Anti-Vandal Illuminated	No Marking	LED Red	1000000 Cycles	Silver	125 V	SPDT		Stainless Steel
CIT Relay and Switch AHU1LBBRN	19 mm	50000 Cycles	3 A	IP67 - Dust Tight Waterproof	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	On-On	Button Flush Round	Anti-Vandal Illuminated	No Marking	LED Red	500000 Cycles	Black	125 V	SPDT
CIT Relay and Switch AHU1NBSBN	19 mm	50000 Cycles	3 A	IP67 - Dust Tight Waterproof	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	Button Flush Round	Anti-Vandal Illuminated	No Marking	Blue LED	1000000 Cycles	Silver	125 V	SPDT		Stainless Steel
CIT Relay and Switch AHU1LKSRN	19 mm	50000 Cycles	3 A	IP67 - Dust Tight Waterproof	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	On-On	Button Flush Round	Anti-Vandal Illuminated	No Marking	LED Red	500000 Cycles	Silver	125 V	SPDT
CIT Relay and Switch AHU1NBSRN	19 mm	50000 Cycles	3 A	IP67 - Dust Tight Waterproof	Panel Mount Front	0.11 in	Quick Connect Solder	2.8 mm	On-Mom	Button Flush Round	Anti-Vandal Illuminated	No Marking	LED Red	1000000 Cycles	Silver	125 V	SPDT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 14.23
		10	$ 12.76
		25	$ 12.20
		40	$ 11.57
		80	$ 11.14
		240	$ 10.44
		440	$ 9.67
		960	$ 8.68

Description

General part information

AHU1 Series

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
