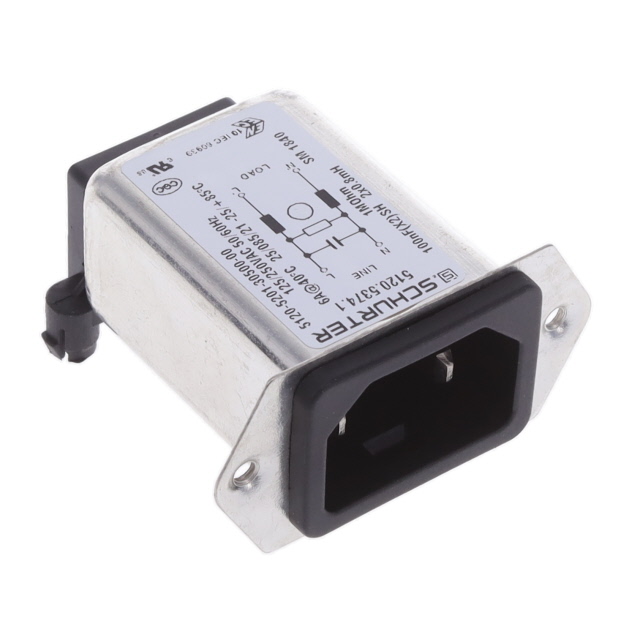

5120.5374.1
ActiveSCHURTER Inc.
PWR ENT RCPT IEC320-C18 PNL SLDR
Deep-Dive with AI
Search across all available documentation for this part.
5120.5374.1
ActiveSCHURTER Inc.
PWR ENT RCPT IEC320-C18 PNL SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5120.5374.1 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | CCC, ENEC, cULus |
| Connector Style | IEC 320-C18 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 6 A |
| Current Rating - Filter | 6 A |
| Features | Shielded, Board Lock |
| Filter Type | Filtered (EMI, RFI) - Commercial, Medical |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Flange, Through Hole, Right Angle |
| Number of Positions | 2 |
| Panel Cutout Dimensions [x] | 30.5 mm |
| Panel Cutout Dimensions [y] | 22.5 mm |
| Panel Thickness | 8 mm |
| Panel Thickness | 0.315 in |
| Termination | Solder |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.08 | |
| 10 | $ 16.22 | |||
| 30 | $ 15.01 | |||
| 50 | $ 14.48 | |||
| 100 | $ 13.79 | |||
| 250 | $ 12.92 | |||
| 500 | $ 12.31 | |||
Description
General part information
5120.5374 Series
Power Entry Connector Receptacle, Male Blades IEC 320-C18 Panel Mount, Flange; Through Hole, Right Angle
