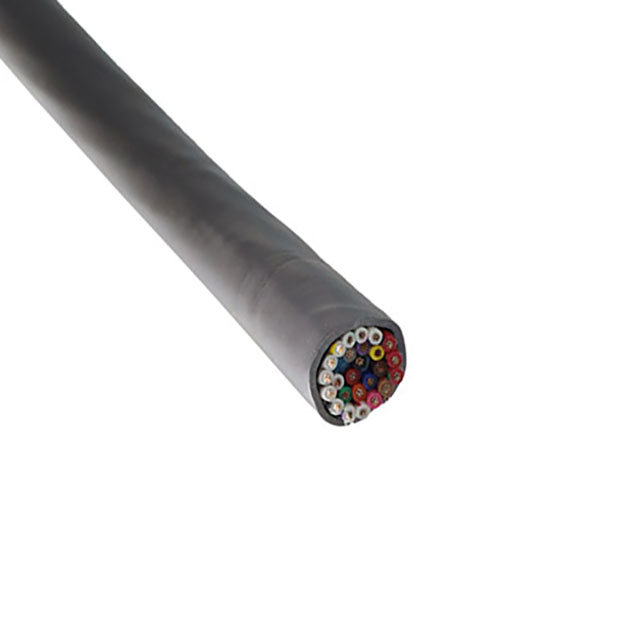

M4672 SL005

Active

ALPHA WIRE

CABLE 25COND 20AWG SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 25COND 20AWG SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	M4672 SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.491 in
Jacket (Insulation) Diameter [diameter]	12.47 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	25
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	20 AWG

Part	Features	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Jacket (Insulation) Material	Shield Type	Wire Gauge	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Shield Coverage	Length [x]	Length [x]	Ratings	Cable Type	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Shield Material
ALPHA WIRE M4672 SL005	Drain Wire Rip Cord	25	0.491 in	12.47 mm	300 V	Poly-Vinyl Chloride (PVC)	Foil	20 AWG	Slate	-20 C	80 C	Poly-Vinyl Chloride (PVC)	100 %	30.5 m	100 ft	UL Style 2464	Multi-Conductor	Copper Tinned	28	7	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Conductor Multi-Conductor Cable Slate 20 AWG Foil 100.0' (30.5m)
