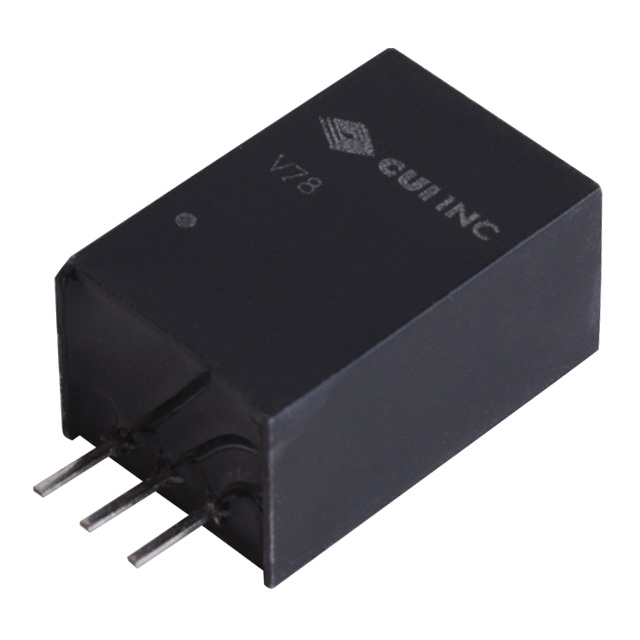

V7815-1000

Obsolete

CUI Inc.

DC DC CONVERTER 15V 15W

Search across all available documentation for this part.

Obsolete

CUI Inc.

DC DC CONVERTER 15V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	V7815-1000

Applications	ITE (Commercial)
Current - Output (Max) [Max]	1 A
Efficiency	94 %
Features	OTP, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3-SIP Module
Power (Watts)	15 W
Size / Dimension [x]	0.45 in
Size / Dimension [x]	11.5 mm
Size / Dimension [y]	0.35 "
Size / Dimension [y]	9 mm
Size / Dimension [z]	0.69 "
Size / Dimension [z]	17.5 mm
Type	Linear Regulator Replacement
Voltage - Input (Max) [Max]	32 V
Voltage - Input (Min) [Min]	20 V
Voltage - Output 1	15 V

Part	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Mounting Type	Voltage - Input (Min) [Min]	Power (Watts)	Number of Outputs	Efficiency	Voltage - Output 1	Features	Current - Output (Max) [Max]	Applications	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Control Features
CUI Inc. V7815-1000	32 V	0.69 "	0.45 in	0.35 "	11.5 mm	9 mm	17.5 mm	Linear Regulator Replacement	Through Hole	20 V	15 W	1	94 %	15 V	OTP SCP	1 A	ITE (Commercial)	3-SIP Module	85 °C	-40 °C
CUI Inc. V7815W-500R	72 V	0.35 "	0.69 in	0.45 in	17.5 mm	11.5 mm	9 mm	Linear Regulator Replacement	Through Hole Right Angle	20 V	7.5 W	1	94 %	15 V	OTP SCP	500 mA	ITE (Commercial)	3-SIP Module	85 °C	-40 °C
CUI Inc. V7815-500	32 V	0.4 "	0.45 in	0.3 "	11.4 mm	7.6 mm	10.2 mm	Linear Regulator Replacement	Through Hole	18 V	7.5 W	1	96 %	15 V	OTP SCP	500 mA	ITE (Commercial)	3-SIP Module	85 °C	-40 °C
CUI Inc. V7815-500-SMT-TR	28 V	0.29 "	0.6 in	0.33 in	15.2 mm	8.3 mm	7.3 mm	Linear Regulator Replacement	Surface Mount	17 V	7.5 W	1	96 %	15 V	OTP Remote On/Off SCP	500 mA	ITE (Commercial)	10-SMD Module 6 Leads	85 °C	-40 °C	Active High Enable
CUI Inc. V7815W-500	72 V	0.69 "	0.45 in	0.35 "	11.5 mm	9 mm	17.5 mm	Linear Regulator Replacement	Through Hole	20 V	7.5 W	1	94 %	15 V	OTP SCP	500 mA	ITE (Commercial)	3-SIP Module	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Regulator Replacement DC DC Converter 1 Output 15V 1A 20V - 32V Input
