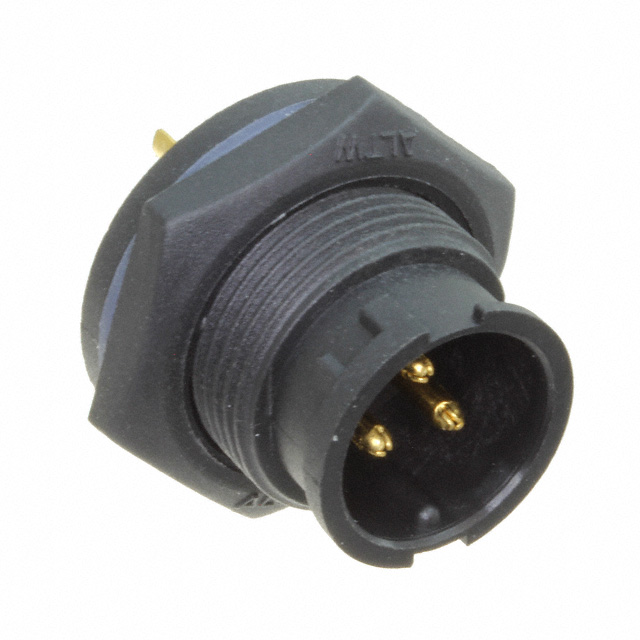

ABB-03PMMS-LC7001

Active

Amphenol LTW

CONN RCPT MALE 3P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT MALE 3P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	ABB-03PMMS-LC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Voltage Rating	300 VDC

Part	Connector Type	Voltage Rating	Ingress Protection	Contact Material	Current Rating (Amps)	Contact Finish - Mating	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Fastening Type	Orientation	Shell Size - Insert	Insert Material	Mounting Feature	Shell Material	Shielding	Material Flammability Rating
Amphenol LTW ABB-03PMMS-LC7001	Male Pins Receptacle	300 VDC	IP67 - Dust Tight Waterproof	Copper Alloy	10 A	Gold	Plastic	-40 °C	105 ░C	Black	Bayonet Lock	Keyed	B	Polyamide (PA) Nylon Glass Filled	Bulkhead - Front Side Nut	Glass Filled Nylon Polyamide (PA)	Unshielded
Amphenol LTW ABB-03PMMS-SC7001	Male Pins Receptacle	250 VAC	IP67 - Dust Tight Waterproof	Copper Alloy	10 A	Gold	Plastic	-40 °C	105 ░C	Black		Keyed	B	Polyamide (PA) Nylon Glass Filled	Bulkhead - Front Side Nut	Glass Filled Nylon Polyamide (PA)	Unshielded	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup
