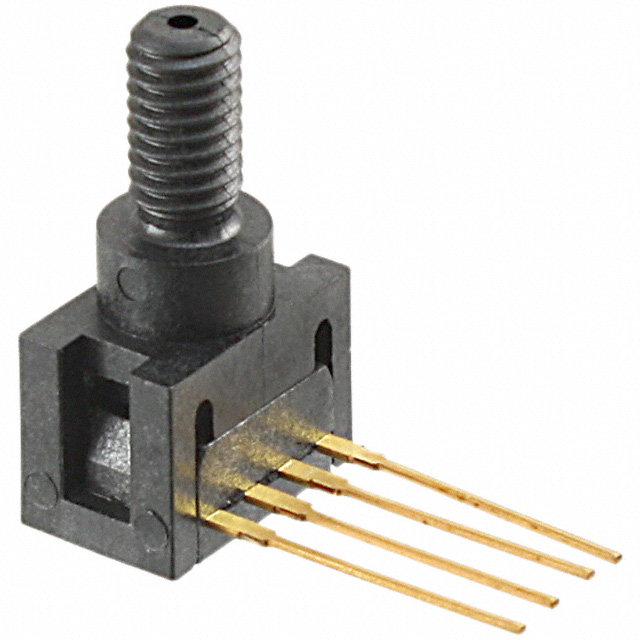

24PCFFH6G
ActiveHoneywell Sensing and Productivity Solutions
SENSOR 100PSIC M5 .225V
Deep-Dive with AI
Search across all available documentation for this part.
24PCFFH6G
ActiveHoneywell Sensing and Productivity Solutions
SENSOR 100PSIC M5 .225V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 24PCFFH6G |
|---|---|
| Accuracy | 1 % |
| Applications | Board Mount |
| Maximum Pressure | 1378.95 kPa |
| Maximum Pressure | 200 PSI |
| Mounting Type | Through Hole |
| Operating Pressure | 100 PSI |
| Operating Pressure | 689.48 kPa |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 225 mV |
| Output [Min] | 0 mV |
| Output Type | Wheatstone Bridge |
| Package / Case | 4-SIP Module |
| Port Size | Male - M5 |
| Port Style | Threaded |
| Pressure Type | Compound |
| Termination Style | PC Pin |
| Voltage - Supply [Max] | 12 V |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 41.24 | |
| 5 | $ 34.78 | |||
| 10 | $ 33.58 | |||
Description
General part information
24PCFFH Series
Pressure Sensor ±100PSI (±689.48kPa) Compound Male - M5 0 mV ~ 225 mV (10V) 4-SIP Module
