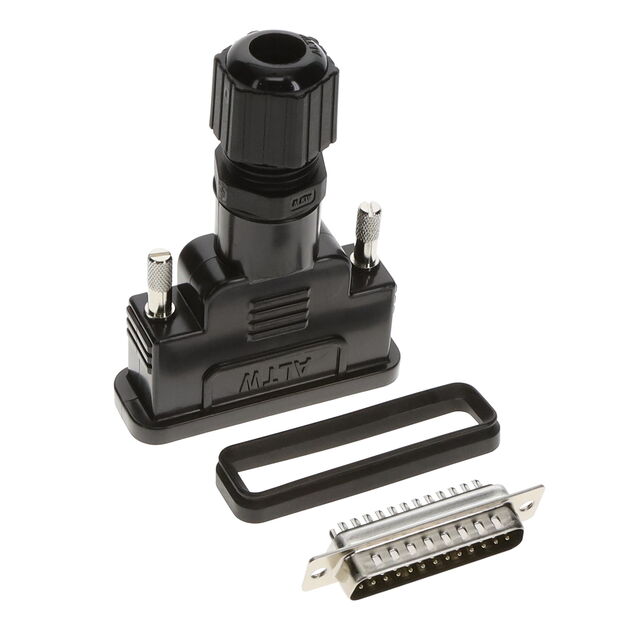

SDB-25BMMA-SL7001

Active

Amphenol LTW

CONN D-SUB PLUG 25POS SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN D-SUB PLUG 25POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	SDB-25BMMA-SL7001

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (Unthreaded)
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3

Part	Connector Type	Contact Finish	Features	Color	Mounting Type	Flange Feature	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Rows	Contact Type	Current Rating (Amps)	Ingress Protection	Connector Style
Amphenol LTW SDB-25BMMA-SL7001	Male Pins Plug	Gold	Grounding Indents Shielded	Black	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	Polybutylene Terephthalate (PBT)	-40 °C	105 ░C	Copper Alloy	B DB	3	2	Signal	5 A	IP67 - Dust Tight Waterproof	D-Sub

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Sub Plug, Male Pins Connector
