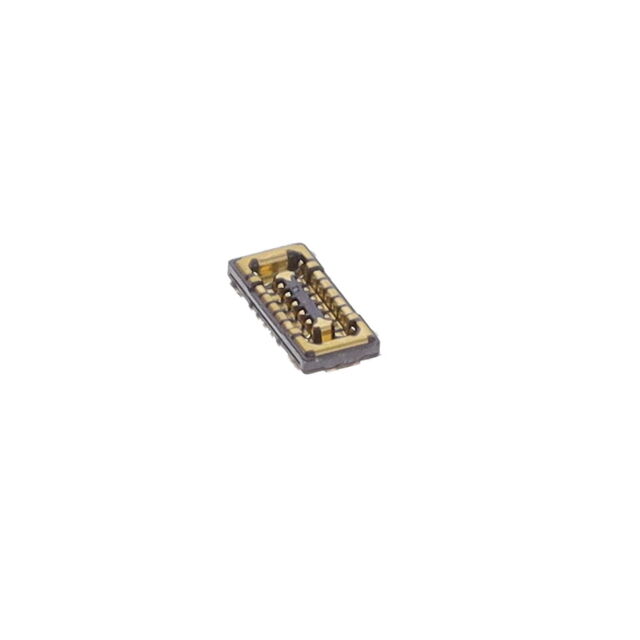

BK13C06-10DS/2-0.35V(800)

Active

Hirose Electric USA, Inc.

CONN RCPT 0.35MM SMD 10POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BK13C06-10DS/2-0.35V(800)

Active

Hirose Electric USA, Inc.

CONN RCPT 0.35MM SMD 10POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BK13C06-10DS/2-0.35V(800)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	1.97 Áin
Contact Finish Thickness	0.05 Ám
Features	Solder Retention
Height Above Board	0.57 mm
Height Above Board	0.022 in
Mated Stacking Heights	0.6 mm
Mounting Type	Surface Mount
Number of Positions	10
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

BK13C06 Series

Part	Number of Rows	Mated Stacking Heights	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Mounting Type	Number of Positions	Features	Pitch [x]	Pitch [x]	Connector Type	Height Above Board [z]	Height Above Board [z]
Hirose Electric USA, Inc. BK13C06-10DS/2-0.35V(800)	2	0.6 mm	Gold	1.97 Áin	0.05 Ám	0.57 mm	0.022 in	Surface Mount	10	Solder Retention	0.35 mm	0.014 in	Center Strip Contacts Receptacle
Hirose Electric USA, Inc. BK13C06-60DP/2-0.35V(800)	2	0.6 mm	Gold	1.97 Áin	0.05 Ám			Surface Mount	60	Solder Retention	0.35 mm	0.014 in	Outer Shroud Contacts Plug	0.48 mm	0.019 "
Hirose Electric USA, Inc. BK13C06-50DS/2-0.35V(800)	2	0.6 mm	Gold	1.97 Áin	0.05 Ám	0.57 mm	0.022 in	Surface Mount	50	Solder Retention	0.35 mm	0.014 in	Center Strip Contacts Receptacle
Hirose Electric USA, Inc. BK13C06-60DS/2-0.35V(800)	2	0.6 mm	Gold	1.97 Áin	0.05 Ám	0.57 mm	0.022 in	Surface Mount	60	Solder Retention	0.35 mm	0.014 in	Center Strip Contacts Receptacle
Hirose Electric USA, Inc. BK13C06-40DP/2-0.35V(895)	2	0.6 mm	Gold	1.97 Áin	0.05 Ám			Surface Mount	40	Solder Retention	0.35 mm	0.014 in	Outer Shroud Contacts Plug	0.48 mm	0.019 "
Hirose Electric USA, Inc. BK13C06-32DP/2-0.35V(800)	2	0.6 mm	Gold	1.97 Áin	0.05 Ám			Surface Mount		Solder Retention	0.35 mm	0.014 in	Outer Shroud Contacts Plug	0.48 mm	0.019 "
Hirose Electric USA, Inc. BK13C06-50DS/2-0.35V(895)	2	0.6 mm	Gold	1.97 Áin	0.05 Ám	0.57 mm	0.022 in	Surface Mount	50	Solder Retention	0.35 mm	0.014 in	Center Strip Contacts Receptacle
Hirose Electric USA, Inc. BK13C06-40DS/2-0.35V(895)	2	0.6 mm	Gold	1.97 Áin	0.05 Ám	0.57 mm	0.022 in	Surface Mount	40	Solder Retention	0.35 mm	0.014 in	Center Strip Contacts Receptacle
Hirose Electric USA, Inc. BK13C06-60DS/2-0.35V(895)	2	0.6 mm	Gold	1.97 Áin	0.05 Ám	0.57 mm	0.022 in	Surface Mount	60	Solder Retention	0.35 mm	0.014 in	Center Strip Contacts Receptacle
Hirose Electric USA, Inc. BK13C06-40DP/2-0.35V(800)	2	0.6 mm	Gold	1.97 Áin	0.05 Ám			Surface Mount	40	Solder Retention	0.35 mm	0.014 in	Outer Shroud Contacts Plug	0.48 mm	0.019 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.88
		10	$ 0.74
		25	$ 0.71
		50	$ 0.70
		100	$ 0.67
		250	$ 0.61
		500	$ 0.55
		1000	$ 0.48
		2500	$ 0.44
	Digi-Reel®	1	$ 0.88
		10	$ 0.74
		25	$ 0.71
		50	$ 0.70
		100	$ 0.67
		250	$ 0.61
		500	$ 0.55
		1000	$ 0.48
		2500	$ 0.44
	Tape & Reel (TR)	20000	$ 0.38

Description

General part information

BK13C06 Series

10 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
