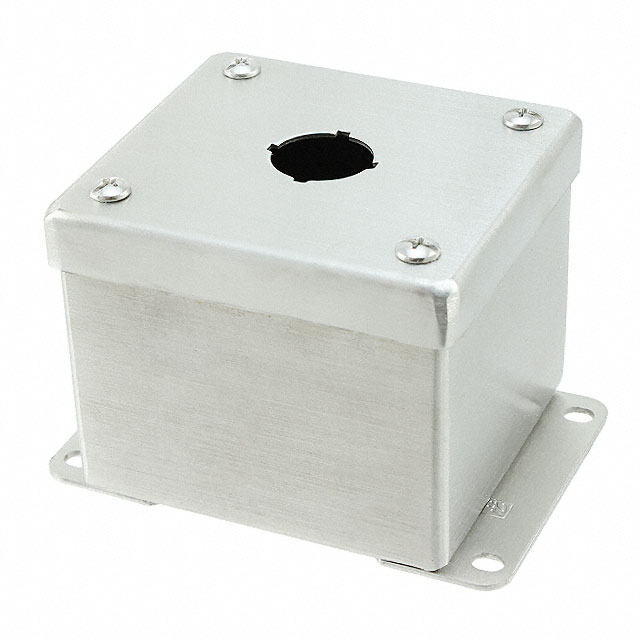

E1PBGSS

Active

Hoffman Enclosures, Inc.

BOX STEEL NAT 4.25"L X 3.50"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

BOX STEEL NAT 4.25"L X 3.50"W

Technical Specifications

Parameters and characteristics for this part

Specification	E1PBGSS

Area (L x W)	62.3 cm²
Area (L x W)	9.66 in²
Color	Natural
Container Type	Box
Design	Cover Included
Features	Mounting Flange, Pushbutton Holes - 1
Height [z]	70 mm
Height [z]	2.756 "
Material	Metal, Steel
Ratings	NEMA 12, IP66, NEMA 4, UL-508A, NEMA 13, NEMA 4X
Size / Dimension [x]	108 mm
Size / Dimension [x]	4.252 "
Size / Dimension [y]	89 mm
Size / Dimension [y]	3.504 in
Thickness	14 Gauge
Weight	1.5 lb
Weight	680.4 g

Part	Features	Thickness	Ratings	Color	Container Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Weight	Weight	Material	Design
Hoffman Enclosures, Inc. E1PBGSS	Mounting Flange Pushbutton Holes - 1	14 Gauge	IP66 NEMA 12 NEMA 13 NEMA 4 NEMA 4X UL-508A	Natural	Box	89 mm	108 mm	3.504 in	4.252 "	70 mm	2.756 "	62.3 cm²	9.66 in²	1.5 lb	680.4 g	Metal Steel	Cover Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Metal, Steel Natural Cover Included 4.252" L x 3.504" W (108.00mm x 89.00mm) X 2.756" (70.00mm)
