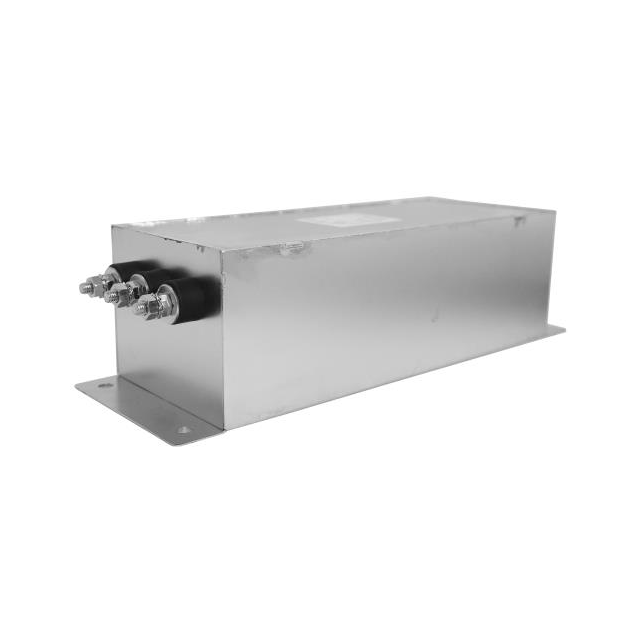

RP325-150-10-W

Active

Astrodyne TDI

LINE FLTR 480VAC 150A CHASS MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RP325-150-10-W

Active

Astrodyne TDI

LINE FLTR 480VAC 150A CHASS MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP325-150-10-W

Applications	General Purpose
Approval Agency	CSA, cURus, SEMKO, ENEC, CE
Configuration	Two Stage
Current	150 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Wire Leads
Voltage - Rated AC	480 V
Voltage - Rated AC (Phase to Ground/Neutral)	3.5 kV

RP325 Series

...

Part	Frequency - Operating [Max]	Frequency - Operating [Min]	Voltage - Rated AC	Applications	Configuration	Current	Voltage - Rated AC (Phase to Ground/Neutral)	Mounting Type	Filter Type	Operating Temperature [custom]	Termination Style	Approval Agency
Astrodyne TDI RP325-30-2000-S	60 Hz	50 Hz	480 V	General Purpose	Two Stage	30 A	3.5 kV	Chassis Mount	Three Phase (Delta)	-25 °C 100 °C	Threaded Post (M5)	CE CSA cURus ENEC SEMKO
Astrodyne TDI RP325-30-0-C	60 Hz	50 Hz	480 V	General Purpose	Two Stage	30 A	3.5 kV	Chassis Mount	Three Phase (Delta)	-25 °C 100 °C	Terminal Block	CE CSA cURus ENEC SEMKO
Astrodyne TDI RP325-200-0-W	60 Hz	50 Hz	480 V	General Purpose	Two Stage	200 A	3.5 kV	Chassis Mount	Three Phase (Delta)	-25 °C 100 °C	Wire Leads	CE CSA cURus ENEC SEMKO
Astrodyne TDI RP325-150-10-C	60 Hz	50 Hz	480 V	General Purpose	Two Stage	150 A	3.5 kV	Chassis Mount	Three Phase (Delta)	-25 °C 100 °C	Terminal Block	CE CSA cURus ENEC SEMKO
Astrodyne TDI RP325-150-10-W	60 Hz	50 Hz	480 V	General Purpose	Two Stage	150 A	3.5 kV	Chassis Mount	Three Phase (Delta)	-25 °C 100 °C	Wire Leads	CE CSA cURus ENEC SEMKO
Astrodyne TDI RP325-50-2000-C	60 Hz	50 Hz	480 V	General Purpose	Two Stage	50 A	3.5 kV	Chassis Mount	Three Phase (Delta)	-25 °C 100 °C	Terminal Block	CE CSA cURus ENEC SEMKO
Astrodyne TDI RP325-50-100-S	60 Hz	50 Hz	480 V	General Purpose	Two Stage	50 A	3.5 kV	Chassis Mount	Three Phase (Delta)	-25 °C 100 °C	Threaded Post (M5)	CE CSA cURus ENEC SEMKO
Astrodyne TDI RP325-300-0-S	60 Hz	50 Hz	480 V	General Purpose	Two Stage	300 A	3.5 kV	Chassis Mount	Three Phase (Delta)	-25 °C 100 °C	Threaded Post (M12)	CE CSA cURus ENEC SEMKO
Astrodyne TDI RP325-200-2000-W	60 Hz	50 Hz	480 V	General Purpose	Two Stage	200 A	3.5 kV	Chassis Mount	Three Phase (Delta)	-25 °C 100 °C	Wire Leads	CE CSA cURus ENEC SEMKO
Astrodyne TDI RP325-200-100-C	60 Hz	50 Hz	480 V	General Purpose	Two Stage	200 A	3.5 kV	Chassis Mount	Three Phase (Delta)	-25 °C 100 °C	Terminal Block	CE CSA cURus ENEC SEMKO

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1145.53
		5	$ 954.61
		10	$ 911.66

Description

General part information

RP325 Series

Three Phase (Delta) EMC/EMI Line Filter 150 A 480V 50/60Hz Two Stage Wire Leads
