Q-3B00P0003.75M

Active

Amphenol Custom Cable

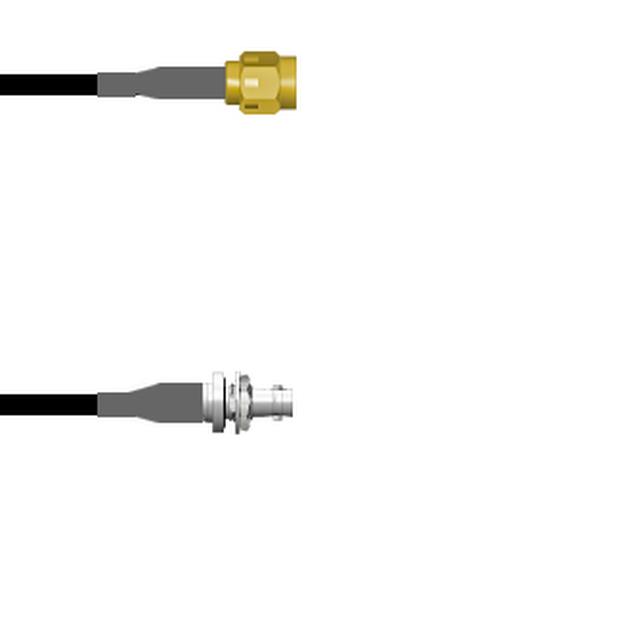

COAX CBL HD-BNC TO SMA 29.5"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL HD-BNC TO SMA 29.5"

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3B00P0003.75M

1st Connector	HD-BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	HD-BNC to SMA

Part	Length	Length	2nd Connector	1st Connector	Color	Features	Connector Impedance	1st Contact Gender	2nd Connector Mounting Type	2nd Contact Gender	1st Connector Mounting Type	Cable Type	Overall Impedance	1st Connector Mounting Feature	Frequency - Max [Max]	Cable Impedance	Style
Amphenol Custom Cable Q-3B00P0003.75M	29.53 "	750 mm	SMA Plug	HD-BNC Jack	Black	Shielded	50 Ohms	Female	Free Hanging (In-Line)	Male	Panel Mount	RG-174	50 Ohms	Bulkhead - Front Side Nut	1 GHz	50 Ohms	HD-BNC to SMA
Amphenol Custom Cable Q-3B00P0005.75M	29.53 "	750 mm	SMA Plug	HD-BNC Jack	Copper	Shielded	50 Ohms	Female	Free Hanging (In-Line)	Male	Panel Mount	RG-316	50 Ohms	Bulkhead - Front Side Nut	3 GHz	50 Ohms	HD-BNC to SMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial HD-BNC to SMA RG-174 29.53" (750.00mm)
