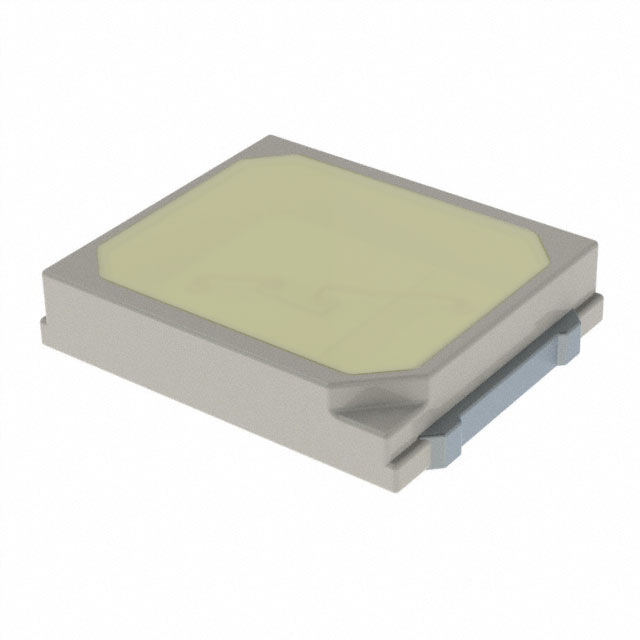

ASMW-LWG0-NDFHE

Active

Broadcom Limited

LED WARM WHT 3000K SMD 2835

Search across all available documentation for this part.

Active

Broadcom Limited

LED WARM WHT 3000K SMD 2835

Technical Specifications

Parameters and characteristics for this part

Specification	ASMW-LWG0-NDFHE

Color	White, Warm
CRI (Color Rendering Index)	80
Current - Max [Max]	200 mA
Current - Test	150 mA
Flux @ 25°C, Current - Test	59 lm
Height - Seated (Max) [Max] [z]	0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm
Lumens/Watt @ Current - Test	127 lm/W
Mounting Type	Surface Mount
Package / Case	1210
Package / Case	3225 Metric
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 in
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Thermal Resistance of Package [custom]	30 °C/W
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	3.1 V

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Flux @ 25°C, Current - Test	Color	Mounting Type	Voltage - Forward (Vf) (Typ)	Viewing Angle	Package / Case	Package / Case	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Max [Max]	Thermal Resistance of Package [custom]	Current - Test
Broadcom Limited ASMW-LWG0-NDFHE	3.2 mm	0.126 in	0.11 in	2.8 mm	59 lm	Warm White	Surface Mount	3.1 V	115 °	1210	3225 Metric	80	127 lm/W	0.035 "	0.9 mm	200 mA	30 °C/W	150 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.66
	Digi-Reel®	1	$ 0.66
	Tape & Reel (TR)	200000	$ 0.13

General part information

LED Lighting - White, Warm 3000K 3.1V 150mA 115° 1210 (3225 Metric)
