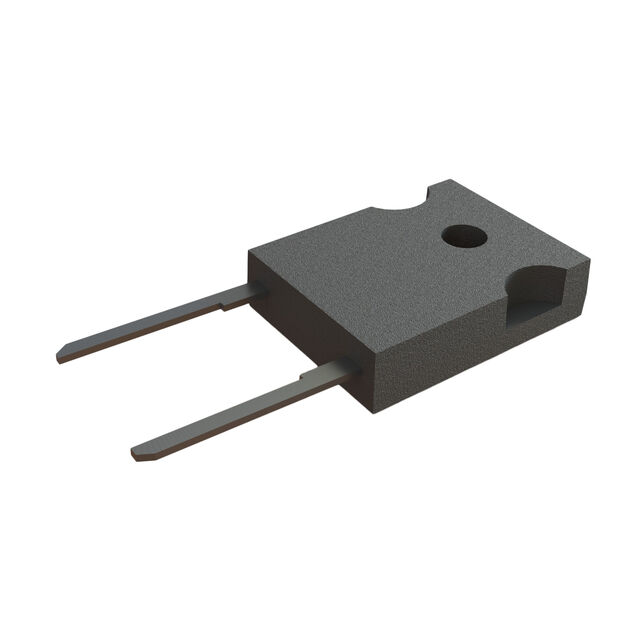

ADC4D20120H
ActiveAnalog Power Inc.
DIODE SIL SIC 1200V 54A TO247-2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ADC4D20120H
ActiveAnalog Power Inc.
DIODE SIL SIC 1200V 54A TO247-2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ADC4D20120H |
|---|---|
| Capacitance @ Vr, F | 12 pF |
| Current - Average Rectified (Io) | 54 A |
| Current - Reverse Leakage @ Vr | 10 µA |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -55 C |
| Package / Case | TO-247-2 |
| Speed | No Recovery Time |
| Supplier Device Package | TO-247-2 |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 1.2 kV |
| Voltage - Forward (Vf) (Max) @ If | 1.85 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 23.55 | |
| 10 | $ 20.92 | |||
| 100 | $ 18.30 | |||
| 500 | $ 15.62 | |||
Description
General part information
ADC4D20120H
Diode 1200 V 54A Through Hole TO-247-2
Documents
Technical documentation and resources
