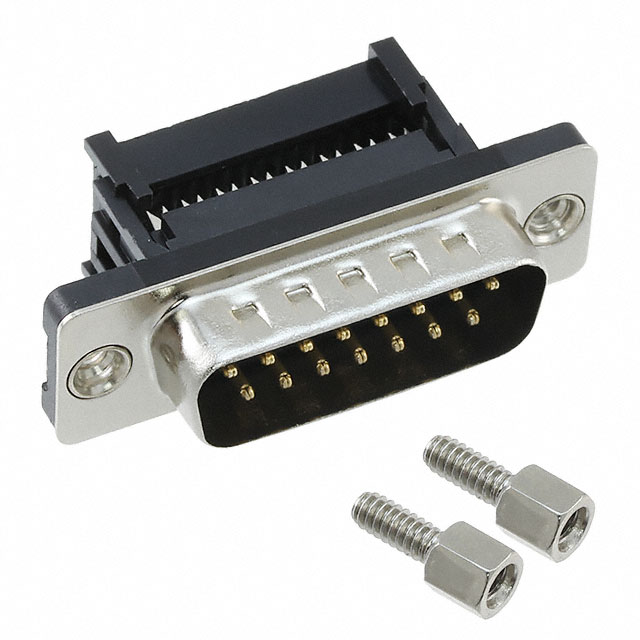

410M0-15-1-00

Active

CnC Tech, LLC

CONN D-SUB PLUG 15POS IDC

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN D-SUB PLUG 15POS IDC

Technical Specifications

Parameters and characteristics for this part

Specification	410M0-15-1-00

Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Brass
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Feed Through
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	IDC, Ribbon Cable
Voltage Rating	250 VDC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Material Flammability Rating	Connector Type	Mounting Type	Flange Feature	Number of Rows	Shell Size, Connector Layout	Contact Type	Contact Material	Contact Finish	Number of Positions	Features	Dielectric Material	Shell Material, Finish	Voltage Rating	Connector Style
CnC Tech, LLC 410M0-15-1-00	-40 °C	105 ░C	IDC Ribbon Cable	UL94 V-0	Male Pins Plug	Free Hanging (In-Line)	Female Screwlock (4-40) Mating Side	2	2	Signal	Brass	Gold	15	Feed Through Grounding Indents	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	250 VDC	D-Sub
CnC Tech, LLC 410M0-15-1-004S	-40 °C	105 ░C	IDC Ribbon Cable	UL94 V-0	Male Pins Plug	Free Hanging (In-Line)	Female Screwlock (4-40) Mating Side	2	2	Signal	Brass	Gold	15	Feed Through Grounding Indents Strain Relief	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	250 VDC	D-Sub

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub Plug, Male Pins Connector
