TXR40AZ00-1004AI
ActiveTE Connectivity Aerospace, Defense and Marine

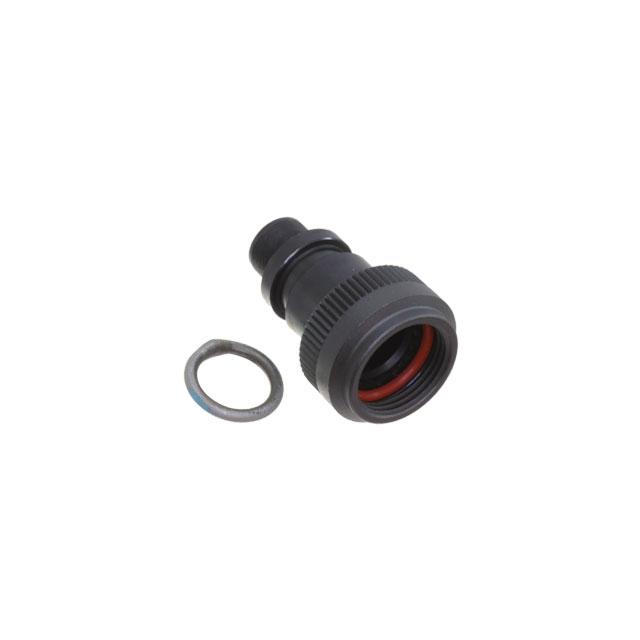

CONN BACKSHELL ADPT SZ11 B BLK
Deep-Dive with AI
Search across all available documentation for this part.
TXR40AZ00-1004AI
ActiveTE Connectivity Aerospace, Defense and Marine
CONN BACKSHELL ADPT SZ11 B BLK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TXR40AZ00-1004AI |
|---|---|
| Cable Exit | 180 ° |
| Color | Black |
| Diameter - Outside [diameter] | 0.827 in |
| Diameter - Outside [diameter] | 21 mm |
| Features | Tinel Lock |
| For Use With/Related Products | MIL-DTL-38999 Series III, IV |
| Includes | 1 pcs, 1 pcs, 1 pcs, 1 pcs |
| Ingress Protection | Environment Resistant |
| Material | Aluminum Alloy |
| Plating | Zinc Nickel |
| Shell Size - Insert | B |
| Shell Size - Insert | 11 |
| Shielding | Shielded |
| Thread Size | M15x1 |
| Type | Backshell, Heat Shrink Adapter |
TXR40AZ00 Series
| Part | Features | Includes | Ingress Protection | Thread Size | Cable Exit | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Shell Size - Insert | Shell Size - Insert | Shielding | For Use With/Related Products | Color | Material | Type | Plating | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine | Tinel Lock | 1 pcs 1 pcs 1 pcs 1 pcs | Environment Resistant | M15x1 | 180 ° | 0.827 in | 21 mm | B | 11 | Shielded | MIL-DTL-38999 Series III IV | Black | Aluminum Alloy | Backshell Heat Shrink Adapter | Zinc Nickel | |
TE Connectivity Aerospace, Defense and Marine | Tinel Lock | 1 pcs 1 pcs 1 pcs 1 pcs | Environment Resistant | M15x1 | 180 ° | 0.827 in | 21 mm | B | 11 | Shielded | MIL-DTL-38999 Series III IV | Black | Aluminum Alloy | Backshell Heat Shrink Adapter | Zinc Nickel | |
TE Connectivity Aerospace, Defense and Marine | Tinel Lock | 1 pcs 1 pcs 1 pcs 1 pcs | Environment Resistant | M18x1 | 180 ° | 0.965 in | 24.5 mm | C | 13 | Shielded | MIL-DTL-38999 Series III IV | Black | Aluminum Alloy | Backshell Heat Shrink Adapter | Zinc Nickel | |
TE Connectivity Aerospace, Defense and Marine | Tinel Lock | 1 pcs 1 pcs 1 pcs 1 pcs | Environment Resistant | M18x1 | 180 ° | 0.965 in | 24.5 mm | C | 13 | Shielded | MIL-DTL-38999 Series III IV | Black | Aluminum Alloy | Backshell Heat Shrink Adapter | Zinc Nickel | |
TE Connectivity Aerospace, Defense and Marine | Tinel Lock | Environment Resistant | M15x1 | 180 ° | 0.827 in | 21 mm | B | 11 | Shielded | MIL-DTL-38999 Series III IV | Black | Aluminum Alloy | Backshell Heat Shrink Adapter | Zinc Nickel | 1 Backshell 1 O-Ring 1 Tinel Ring 2 Braids | |
TE Connectivity Aerospace, Defense and Marine | Tinel Lock | 1 pcs 1 pcs 1 pcs 1 pcs | Environment Resistant | M25x1 | 180 ° | 1.279 in | 32.49 mm | 17 E | Shielded | MIL-DTL-38999 Series III IV | Black | Aluminum Alloy | Backshell Heat Shrink Adapter | Zinc Nickel | ||
TE Connectivity Aerospace, Defense and Marine | Tinel Lock | 1 pcs 1 pcs 1 pcs 1 pcs | Environment Resistant | M18x1 | 180 ° | 0.965 in | 24.5 mm | C | 13 | Shielded | MIL-DTL-38999 Series III IV | Black | Aluminum Alloy | Backshell Heat Shrink Adapter | Zinc Nickel | |
TE Connectivity Aerospace, Defense and Marine | Tinel Lock | 1 pcs 1 pcs 1 pcs 1 pcs | Environment Resistant | M31x1 | 180 ° | 1.457 " | 37 mm | G | 21 | Shielded | MIL-DTL-38999 Series III IV | Black | Aluminum Alloy | Backshell Heat Shrink Adapter | Zinc Nickel | |
TE Connectivity Aerospace, Defense and Marine | Tinel Lock | Environment Resistant | M15x1 | 180 ° | 0.827 in | 21 mm | B | 11 | Shielded | MIL-DTL-38999 Series III IV | Black | Aluminum Alloy | Backshell Heat Shrink Adapter | Zinc Nickel | 1 Braid 1 Tinel Ring 2 O-Rings 2 pc Backshell | |
TE Connectivity Aerospace, Defense and Marine | Tinel Lock | 1 pcs 1 pcs 1 pcs 1 pcs | Environment Resistant | M28x1 | 180 ° | 1.398 in | 35.5 mm | F | 19 | Shielded | MIL-DTL-38999 Series III IV | Black | Aluminum Alloy | Backshell Heat Shrink Adapter | Zinc Nickel |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 94.46 | |
| 10 | $ 80.30 | |||
| 25 | $ 75.27 | |||
| 50 | $ 71.69 | |||
| 100 | $ 68.40 | |||
Description
General part information
TXR40AZ00 Series
Black Connector Backshell, Heat Shrink Adapter M15x1 11, B
