19S201-400L5

Active

Rosenberger

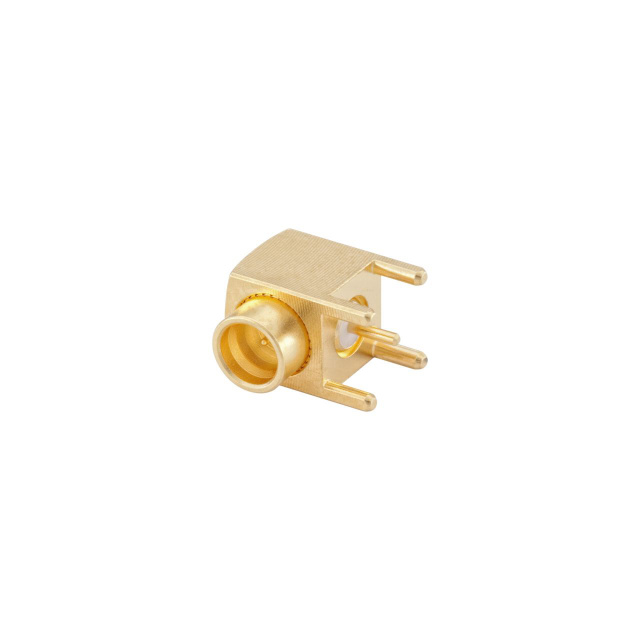

SMP RIGHT ANGLE PLUG PCB

Search across all available documentation for this part.

Active

Rosenberger

SMP RIGHT ANGLE PLUG PCB

Technical Specifications

Parameters and characteristics for this part

Specification	19S201-400L5

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	26.5 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Surface Mount, Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Contact Termination	Fastening Type	Impedance	Voltage Rating	Body Material	Center Contact Plating	Center Contact Material	Shield Termination	Frequency - Max [Max]	Housing Color	Mounting Type	Body Finish	Number of Ports	Dielectric Material	Connector Type	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]
Rosenberger 19S201-400L5	Solder	Snap-On	50 Ohms	335 V	Brass	Gold	Brass	Solder	26.5 GHz	Gold	Surface Mount Right Angle	Gold	1	Polytetrafluoroethylene (PTFE)	Male Pin Plug	500	155 °C	-65 ░C
Rosenberger 19S201-40ML5-NM	Solder	Snap-On	50 Ohms	335 V	Bronze	Gold	Bronze	Solder	26.5 GHz	Gold	Surface Mount Right Angle	Gold	1	Liquid Crystal Polymer (LCP)	Male Pin Plug	500	155 °C	-65 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMP Connector Plug, Male Pin 50 Ohms Surface Mount, Right Angle Solder
