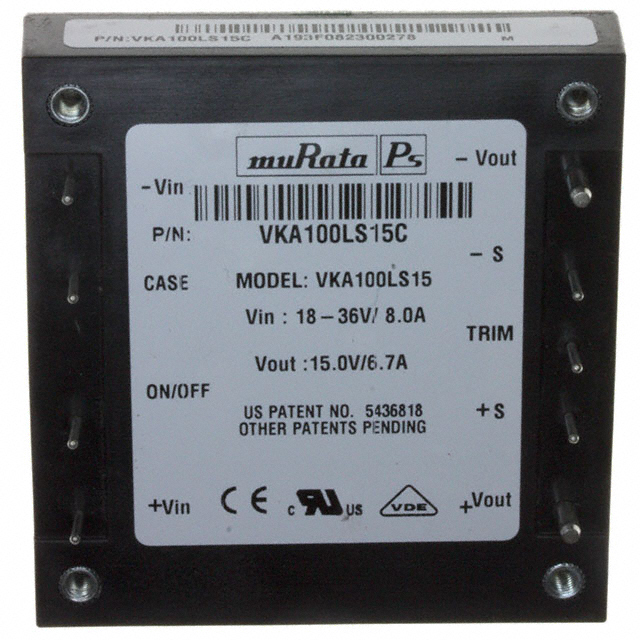

VKA100LS15C
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 15V 100W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VKA100LS15C
ObsoleteMurata Power Solutions Inc.
DC DC CONVERTER 15V 100W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VKA100LS15C |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 6.7 A |
| Efficiency | 89 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 9-DIP Module, 1/2 Brick |
| Power (Watts) | 100 W |
| Size / Dimension [x] | 2.4 in |
| Size / Dimension [x] | 61 mm |
| Size / Dimension [y] | 57.9 mm |
| Size / Dimension [y] | 2.28 in |
| Size / Dimension [z] | 13.5 mm |
| Size / Dimension [z] | 0.53 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
VKA100 Series
Isolated Module DC DC Converter 1 Output 15V 6.7A 18V - 36V Input
