Q403013PCICC

Active

Hoffman Enclosures, Inc.

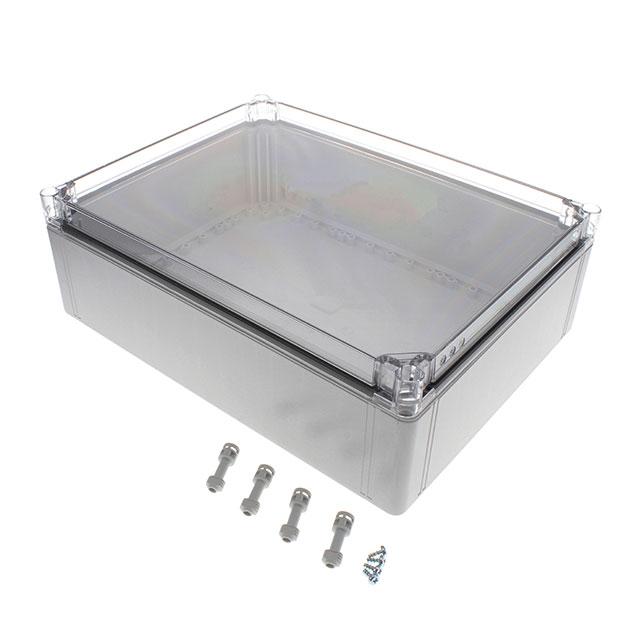

BOX PLSTC GRY/CLR 15.7"LX11.8"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

BOX PLSTC GRY/CLR 15.7"LX11.8"W

Technical Specifications

Parameters and characteristics for this part

Specification	Q403013PCICC

Area (L x W) [custom]	1200 cm²
Area (L x W) [custom]	186 in²
Color	Gray, Clear Cover/Door
Container Type	Box
Design	Cover Included
Features	Wall Mount, PCB Supports, Sealing Gasket
Height [z]	5.157 in
Height [z]	131 mm
Material	Plastic, Polycarbonate
Ratings	NEMA 12, IP66, NEMA 4, UL-508A, NEMA 13, NEMA 4X
Size / Dimension [x]	400 mm
Size / Dimension [x]	15.748 "
Size / Dimension [y]	11.811 "
Size / Dimension [y]	300 mm
Thickness	0.157 in
Thickness	4 mm
Weight	2.3 kg
Weight	5 lbs

Part	Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Thickness	Thickness	Design	Height [z]	Height [z]	Color	Area (L x W) [custom]	Area (L x W) [custom]	Container Type	Ratings	Features
Hoffman Enclosures, Inc. Q403013PCICC	Plastic Polycarbonate	400 mm	11.811 "	300 mm	15.748 "	2.3 kg	5 lbs	0.157 in	4 mm	Cover Included	5.157 in	131 mm	Clear Cover/Door Gray	1200 cm²	186 in²	Box	IP66 NEMA 12 NEMA 13 NEMA 4 NEMA 4X UL-508A	PCB Supports Sealing Gasket Wall Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, Polycarbonate Gray, Clear Cover/Door Cover Included 15.748" L x 11.811" W (400.00mm x 300.00mm) X 5.157" (131.00mm)
