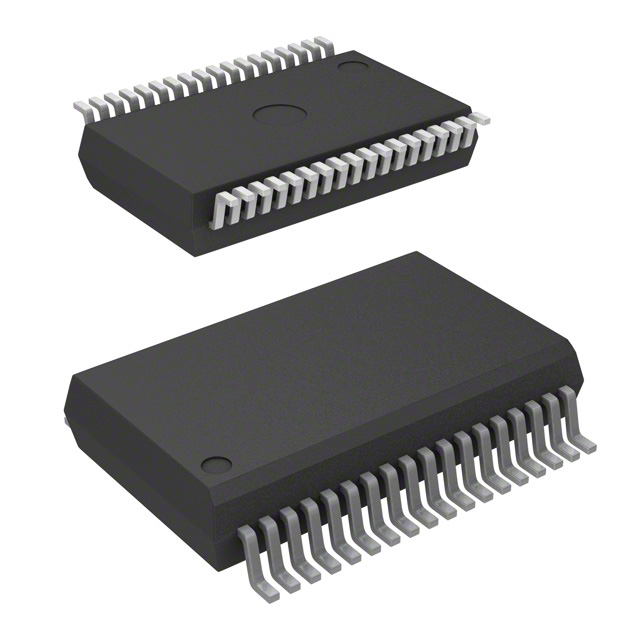

1EDI2001ASXUMA2

Obsolete

Infineon Technologies

DGT ISO 3.75KV 1CH GT DVR DSO36

Search across all available documentation for this part.

Obsolete

Infineon Technologies

DGT ISO 3.75KV 1CH GT DVR DSO36

Technical Specifications

Parameters and characteristics for this part

Specification	1EDI2001ASXUMA2

Current - Output High, Low [custom]	1 A
Current - Output High, Low [custom]	1 A
Grade	Automotive
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	36-BSSOP
Package / Case [x]	0.295 in
Package / Case [y]	7.5 mm
Qualification	AEC-Q100
Rise / Fall Time (Typ) [custom]	60 ns
Rise / Fall Time (Typ) [custom]	30 ns
Supplier Device Package	PG-DSO-36-63
Technology	Magnetic Coupling
Voltage - Isolation	3750 Vrms
Voltage - Output Supply [Max]	18 V
Voltage - Output Supply [Min]	13 V

Part	Voltage - Isolation	Package / Case	Package / Case [x]	Package / Case [y]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Grade	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Supplier Device Package	Qualification	Technology	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Number of Channels	Mounting Type
Infineon Technologies 1EDI2001ASXUMA2	3750 Vrms	36-BSSOP	0.295 in	7.5 mm	150 °C	-40 °C	1 A	1 A	Automotive	60 ns	30 ns	PG-DSO-36-63	AEC-Q100	Magnetic Coupling	13 V	18 V	1	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Gate Driver Magnetic Coupling 3750Vrms 1 Channel PG-DSO-36-63
