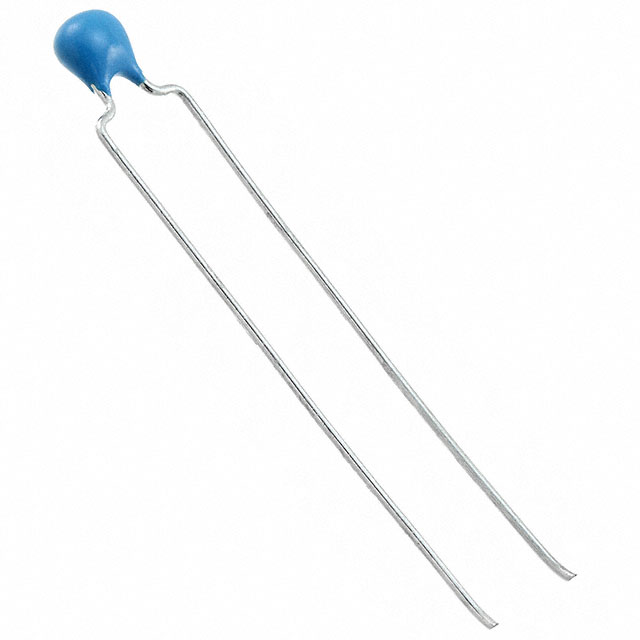

RDER72A334K1S1C03A

Obsolete

Murata Power Solutions Inc.

CAP CER 0.33UF 100V X7R RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet RDE Series Summary +1

RDER72A334K1S1C03A

Obsolete

Murata Power Solutions Inc.

CAP CER 0.33UF 100V X7R RADIAL

Deep-Dive with AI

DocumentsDatasheet RDE Series Summary +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RDER72A334K1S1C03A

Applications	General Purpose
Capacitance	0.33 µF
Height - Seated (Max) [Max] [z]	0.197 in
Height - Seated (Max) [Max] [z]	5 mm
Lead Spacing	0.098 in
Lead Spacing	2.5 mm
Lead Style	Formed Leads
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	4.5 mm
Size / Dimension [x]	0.177 in
Size / Dimension [y]	0.124 "
Size / Dimension [y]	3.15 mm
Temperature Coefficient	X7R
Tolerance	10 %
Voltage - Rated	100 V

RDER72A Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Lead Style	Applications	Capacitance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Temperature Coefficient	Lead Spacing	Lead Spacing	Tolerance	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Murata Power Solutions Inc. RDER72A684K2M1H03A	-55 °C	125 °C	Through Hole	Radial	0.236 in	6 mm	100 V	Formed Leads - Kinked	General Purpose	680 nF	3.15 mm	0.124 "	5.5 mm	0.217 "	X7R	5 mm	0.197 in	10 %
Murata Power Solutions Inc. RDER72A334K1S1C03A	-55 °C	125 °C	Through Hole	Radial			100 V	Formed Leads	General Purpose	0.33 µF		0.124 "	4.5 mm	0.177 in	X7R	2.5 mm	0.098 in	10 %	3.15 mm	0.197 in	5 mm
Murata Power Solutions Inc. RDER72A103K0S1C03A	-55 °C	125 °C	Through Hole	Radial			100 V	Formed Leads	General Purpose	10000 pF		0.098 in	4 mm	0.157 "	X7R			10 %	2.5 mm
Murata Power Solutions Inc. RDER72A682K0S1H03A	-55 °C	125 °C	Through Hole	Radial	0.236 in	6 mm	100 V	Formed Leads	General Purpose	6800 pF		0.098 in	4 mm	0.157 "	X7R	2.5 mm	0.098 in	10 %	2.5 mm
Murata Power Solutions Inc. RDER72A332K0M1H03A	-55 °C	125 °C	Through Hole	Radial	0.236 in	6 mm	100 V	Formed Leads - Kinked	General Purpose	3300 pF		0.098 in	4 mm	0.157 "	X7R	5 mm	0.197 in	10 %	2.5 mm
Murata Power Solutions Inc. RDER72A331K0P1H03B	-55 °C	125 °C	Through Hole	Radial	0.236 in	6 mm	100 V	Formed Leads	General Purpose	330 pF		0.098 in	4 mm	0.157 "	X7R	2.5 mm	0.098 in	10 %	2.5 mm
Murata Power Solutions Inc. RDER72A224K1K1H03B	-55 °C	125 °C	Through Hole	Radial			100 V	Formed Leads - Kinked	General Purpose	0.22 µF		0.124 "	4.5 mm	0.177 in	X7R	5 mm	0.197 in	10 %	3.15 mm	0.197 in	5 mm
Murata Power Solutions Inc. RDER72A102K0M1H03A	-55 °C	125 °C	Through Hole	Radial	0.236 in	6 mm	100 V	Formed Leads - Kinked	General Purpose	0.001 µF		0.098 in	4 mm	0.157 "	X7R	5 mm	0.197 in	10 %	2.5 mm
Murata Power Solutions Inc. RDER72A223K0S1C03A	-55 °C	125 °C	Through Hole	Radial			100 V	Formed Leads	General Purpose	0.022 µF		0.098 in	4 mm	0.157 "	X7R			10 %	2.5 mm
Murata Power Solutions Inc. RDER72A683K1M1H03A	-55 °C	125 °C	Through Hole	Radial			100 V	Formed Leads - Kinked	General Purpose	0.068 µF		0.124 "	4.5 mm	0.177 in	X7R	5 mm	0.197 in	10 %	3.15 mm	0.197 in	5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RDER72A Series

0.33 µF ±10% 100V Ceramic Capacitor X7R Radial

Documents

Technical documentation and resources

Datasheet

RDE Series Summary

Datasheet

Radial Lead Type Monolithic Part Numbering

Datasheet
