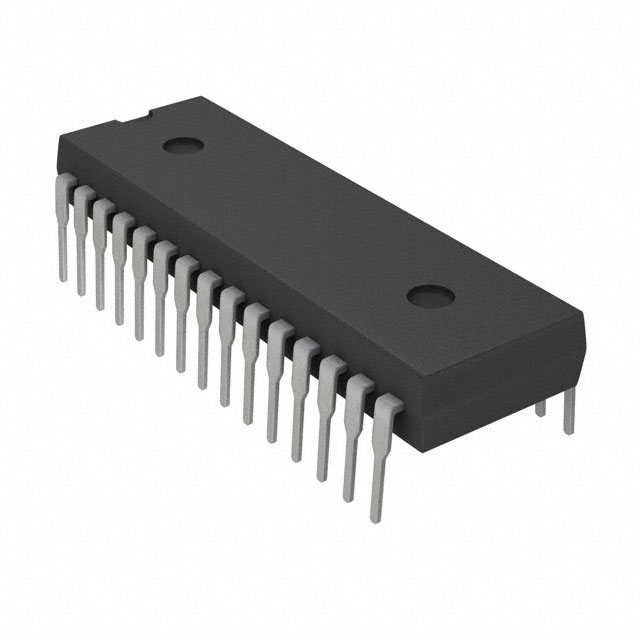

SI-7510

Obsolete

Sanken Electric USA Inc.

IC MTR DRV MULTPHAS 3-5.5V 30DIP

Search across all available documentation for this part.

Obsolete

Sanken Electric USA Inc.

IC MTR DRV MULTPHAS 3-5.5V 30DIP

Technical Specifications

Parameters and characteristics for this part

Specification	SI-7510

Applications	General Purpose
Current - Output	6 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type - Stepper	Multiphase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-10 °C
Output Configuration	Half Bridge (5)
Package / Case	10.16 mm
Package / Case	30-DIP
Package / Case	10.16 mm
Step Resolution	1, 0.5
Supplier Device Package	30-DIP
Technology	Power MOSFET
Voltage - Load [Max]	42 V
Voltage - Load [Min]	10 V
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	3 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Interface	Motor Type - Stepper	Current - Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Package / Case	Package / Case	Supplier Device Package	Step Resolution	Output Configuration	Technology	Voltage - Load [Max]	Voltage - Load [Min]	Mounting Type	Function
Sanken Electric USA Inc. SI-7510	-10 °C	150 °C	General Purpose	Parallel	Multiphase	6 A	5.5 V	3 V	10.16 mm	30-DIP	10.16 mm	30-DIP	0.5 1	Half Bridge (5)	Power MOSFET	42 V	10 V	Through Hole	Driver - Fully Integrated Control and Power Stage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Multiphase Motor Driver Power MOSFET Parallel 30-DIP
