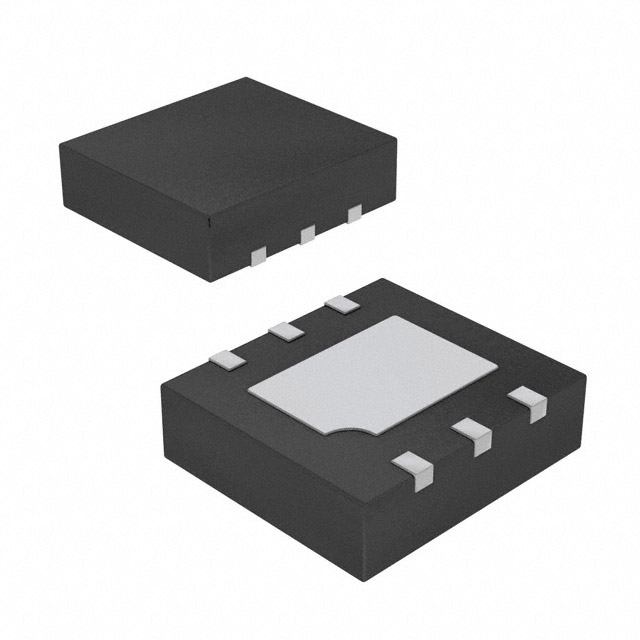

MP1528DQ-LF-Z

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC LED DRVR RGLTR PWM 950MA 6QFN

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC LED DRVR RGLTR PWM 950MA 6QFN

Technical Specifications

Parameters and characteristics for this part

Part	Dimming	Voltage - Output	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Type	Topology	Voltage - Supply (Max) [Max]	Number of Outputs	Current - Output / Channel	Mounting Type	Applications	Supplier Device Package	Package / Case [custom]	Package / Case
MONOLITHIC POWER SYSTEMS (MPS) MP1528DQ-LF-Z	Analog PWM	36 V	85 °C	-40 °C	6-VDFN Exposed Pad	DC DC Regulator	Step-Up (Boost)	36 V	1	950 mA	Surface Mount	Backlight	6-QFN (3x3)
MONOLITHIC POWER SYSTEMS (MPS) MP1528DQ-LF-P	Analog PWM	36 V	85 °C	-40 °C	6-VDFN Exposed Pad	DC DC Regulator	Step-Up (Boost)	36 V	1	950 mA	Surface Mount	Backlight	6-QFN (3x3)
MONOLITHIC POWER SYSTEMS (MPS) MP1528DK-LF	Analog PWM	36 V	85 °C	-40 °C	8-MSOP 8-TSSOP	DC DC Regulator	Step-Up (Boost)	36 V	1	950 mA	Surface Mount	Backlight	8-MSOP	0.118 in	3 mm
MONOLITHIC POWER SYSTEMS (MPS) MP1528DK-LF-Z	Analog PWM	36 V	85 °C	-40 °C	8-MSOP 8-TSSOP	DC DC Regulator	Step-Up (Boost)	36 V	1	950 mA	Surface Mount	Backlight	8-MSOP	0.118 in	3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 1.06

General part information

LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) Analog, PWM Dimming 950mA (Switch) 6-QFN (3x3)
