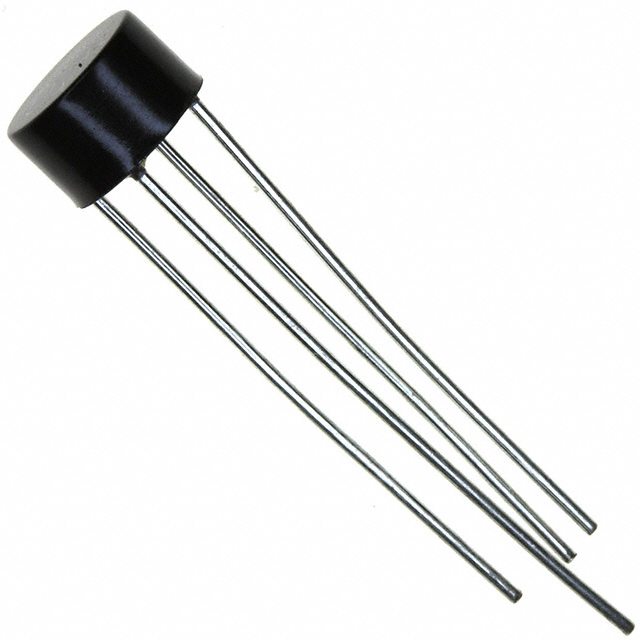

W005M-BP

Obsolete

Micro Commercial Components

BRIDGE RECT 1PHASE 50V 1.5A WOM

Search across all available documentation for this part.

Obsolete

Micro Commercial Components

BRIDGE RECT 1PHASE 50V 1.5A WOM

Technical Specifications

Parameters and characteristics for this part

Specification	W005M-BP

Current - Average Rectified (Io)	1.5 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	4-Circular, WOM
Supplier Device Package	WOM
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1 V
Voltage - Peak Reverse (Max) [Max]	50 V

Part	Diode Type	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Package / Case	Supplier Device Package	Technology	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
Micro Commercial Components W005M-BP	Single Phase	10 µA	1.5 A	4-Circular WOM	WOM	Standard	1 V	50 V	125 ¯C	-55 °C	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 50 V Through Hole WOM
