M7NNK-1506R

Active

3M (TC)

D-SUB CABLE MML15K/MC16M/MML15K

Search across all available documentation for this part.

Active

3M (TC)

D-SUB CABLE MML15K/MC16M/MML15K

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	1st Connector	Usage	2nd Connector	Shielding	Length	Length	Contact Finish Thickness	Contact Finish Thickness	Type	Color	Number of Positions
3M (TC) M7NNK-2506J	Gold	Plug Male Pins	Patch	Plug Male Pins	Unshielded	6 ft	1.83 m	0.76 Ám	30 Áin	DB25
3M (TC) M7NNK-1506R	Gold	Plug Male Pins	Patch	Plug Male Pins	Unshielded	6 ft	1.83 m	0.76 Ám	30 Áin	DB15	Multiple Ribbon	15
3M (TC) M7NNK-3710J	Gold	Plug Male Pins	Patch	Plug Male Pins	Unshielded	10 ft	3.05 m	0.76 Ám	30 Áin	DB37		37
3M (TC) M7NNK-0910J	Gold	Plug Male Pins	Patch	Plug Male Pins	Unshielded	10 ft	3.05 m	0.76 Ám	30 Áin	DB9		9
3M (TC) M7NNK-1510J	Gold	Plug Male Pins	Patch	Plug Male Pins	Unshielded	10 ft	3.05 m	0.76 Ám	30 Áin	DB15		15
3M (TC) M7NNK-5006R	Gold	Plug Male Pins	Patch	Plug Male Pins	Unshielded	6 ft	1.83 m	0.76 Ám	30 Áin	DB50	Multiple Ribbon	50
3M (TC) M7NNK-2506R	Gold	Plug Male Pins	Patch	Plug Male Pins	Unshielded	6 ft	1.83 m	0.76 Ám	30 Áin	DB25	Multiple Ribbon
3M (TC) M7NNK-0910R	Gold	Plug Male Pins	Patch	Plug Male Pins	Unshielded	10 ft	3.05 m	0.76 Ám	30 Áin	DB9	Multiple Ribbon	9
3M (TC) M7NNK-1506J	Gold	Plug Male Pins	Patch	Plug Male Pins	Unshielded	6 ft	1.83 m	0.76 Ám	30 Áin	DB15		15
3M (TC) M7NNK-5010J	Gold	Plug Male Pins	Patch	Plug Male Pins	Unshielded	10 ft	3.05 m	0.76 Ám	30 Áin	DB50		50

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

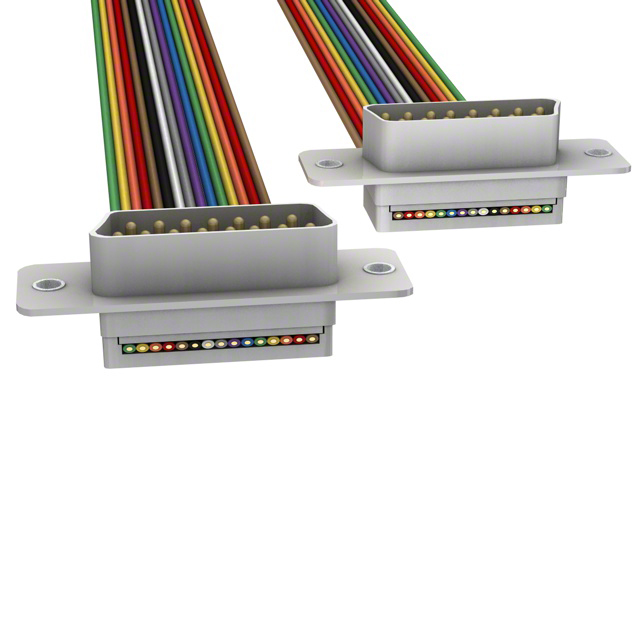

D-Sub Cable Assembly DB15 Multiple, Ribbon 6.00' (1.83m) Plug, Male Pins to Plug, Male Pins Unshielded
